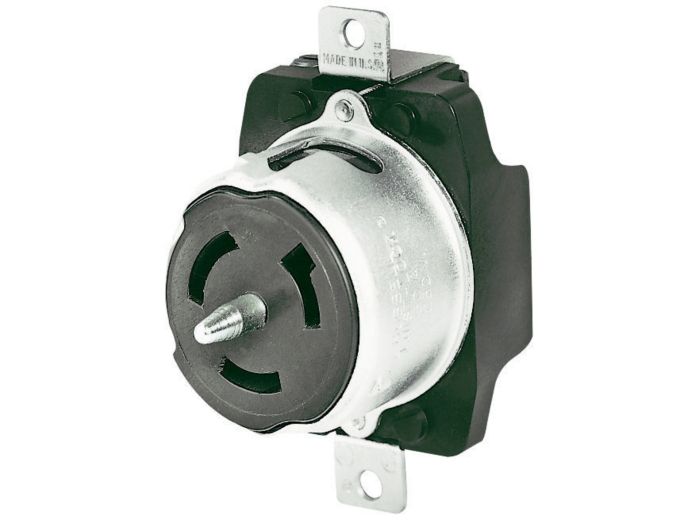

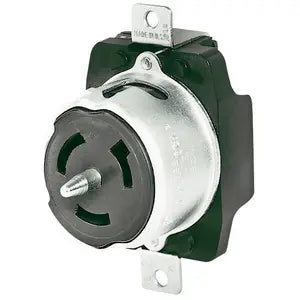

Bryant CS8269A Receptacle 50A 250V

Product Description

The BRYANT CS8269A is an industrial grade receptacle. Rated at 50A and 250V, this 2-pole, 3-wire grounding receptacle features a thermoset construction for high heat resistance and an armored housing for superior impact resistance. Ideal for heavy-duty industrial applications.

• Thermoset construction offers high heat resistance
• Armored housing provides superior impact resistance
• One piece contacts provide low operating temperatures

Product Highlights

Industrial grade receptacle with high heat and impact resistance for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CS8269A

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: CS8269A
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 50A Single Armored Heavy Duty Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Type: Receptacle
• UPC: 781786253315
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 250 VAC
• Voltage Rating Description: 250V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Industry Standard(s): WR Rating
• Voltage: 250 Volts
• Amperage: 50 Amps
• Connector Type: Twist-lock
• Total Power Outlets: 1
• Manufacturer Part Number: CS8269A
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Receptacle, 50A 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
