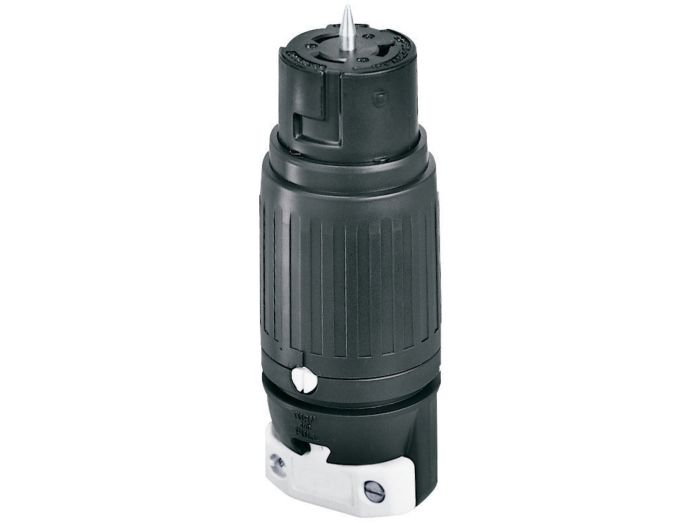

Bryant CS8264 Female Connector Body 50A 250V

Product Description

The BRYANT CS8264 is an industrial-grade female connector body, designed for heavy-duty applications. Rated at 50A and 250V, this 2-pole, 3-wire grounding connector features screw terminals for secure connections. Its thermoplastic polyester interior provides heat resistance and impact strength. Ideal for industrial use, it ensures reliable power connectivity.

• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
• Oversized contacts minimize operating temperature

Product Highlights

Heavy-duty industrial female connector body with robust construction and secure screw terminal connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CS8264
• Country of Origin: PR, US

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: CS8264
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 50A Heavy Duty Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786831124
• Dimensions: 6.50 in x 2.56 in x 2.56 in
• Display Size: Standard Sized Product
• Height: 2.56 in
• Length: 6.5 in
• Width: 2.56 in
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Voltage Rating: 250 VAC
• Voltage Rating Description: 250 VAC
• Conductor Range: #6 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Carton Quantity: 10
• Manufacturer Part Number: CS8264
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Comments: Heavy Duty
• Net Weight: 0.935 lbs
• Gross Weight: 1 lb
• Connector Type: Locking, California Style
• Ground: Grounding
• NEMA: Non-NEMA
• Cord Diameter: 0.750 - 1.150
