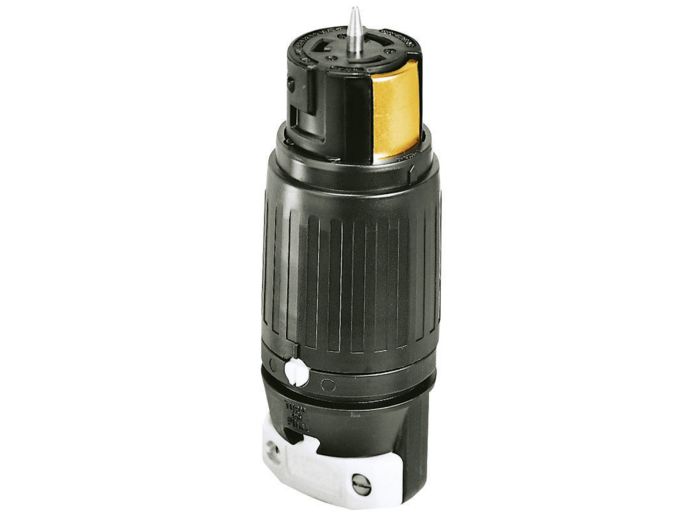

Bryant CS8164 Female Connector Body 50A 3-Phase Delta 480V AC

Product Description

The BRYANT CS8164 is an industrial-grade female connector body. Designed for heavy-duty applications, it supports 50A 3-Phase Delta 480V AC power. It features a box terminal with a hex socket threaded slug, ensuring high clamping pressure on conductors. Its thermoplastic polyester interior offers heat resistance and impact strength.

• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
• Oversized contacts minimize operating temperature

Product Highlights

Heavy-duty industrial connector body with robust construction for secure and reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CS8164
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: CS8164
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: 50A Heavy Duty Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 C with impact.
• Type: Connector Body
• UPC: 781786831100
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Voltage Rating: 480V AC
• Voltage Rating Description: 3 Phase 480 VAC
• Conductor Range: #6 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Brand: BRYANT
• MPN: CS8164
• Country of Origin: United States
• Manufacturer Part Number: CS8164
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Phase: 3
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Comments: Heavy Duty
• For Maximum Cable Diameter: 1.25 in
• For Minimum Cable Diameter: 0.83 in
• Item: Locking Connector
• NEMA Receptacle Configuration: Non-NEMA
• Wire Connection Type: Screw Terminals
• Connection Orientation: Straight
• Grounding: Grounded
• Housing Color: Black
• Cap Type: No Cap
• Standards: CSA Certified to CSA C22.2 No.42, File 31943, File E17740, UL Listed to ANSI/UL 498
• Resistance Properties: Heat Resistant, Impact Resistant
• Wiring Style: Standard
