Bryant CS6364L Connector 50A 125/250V 3P4W CS6364N

Product Description

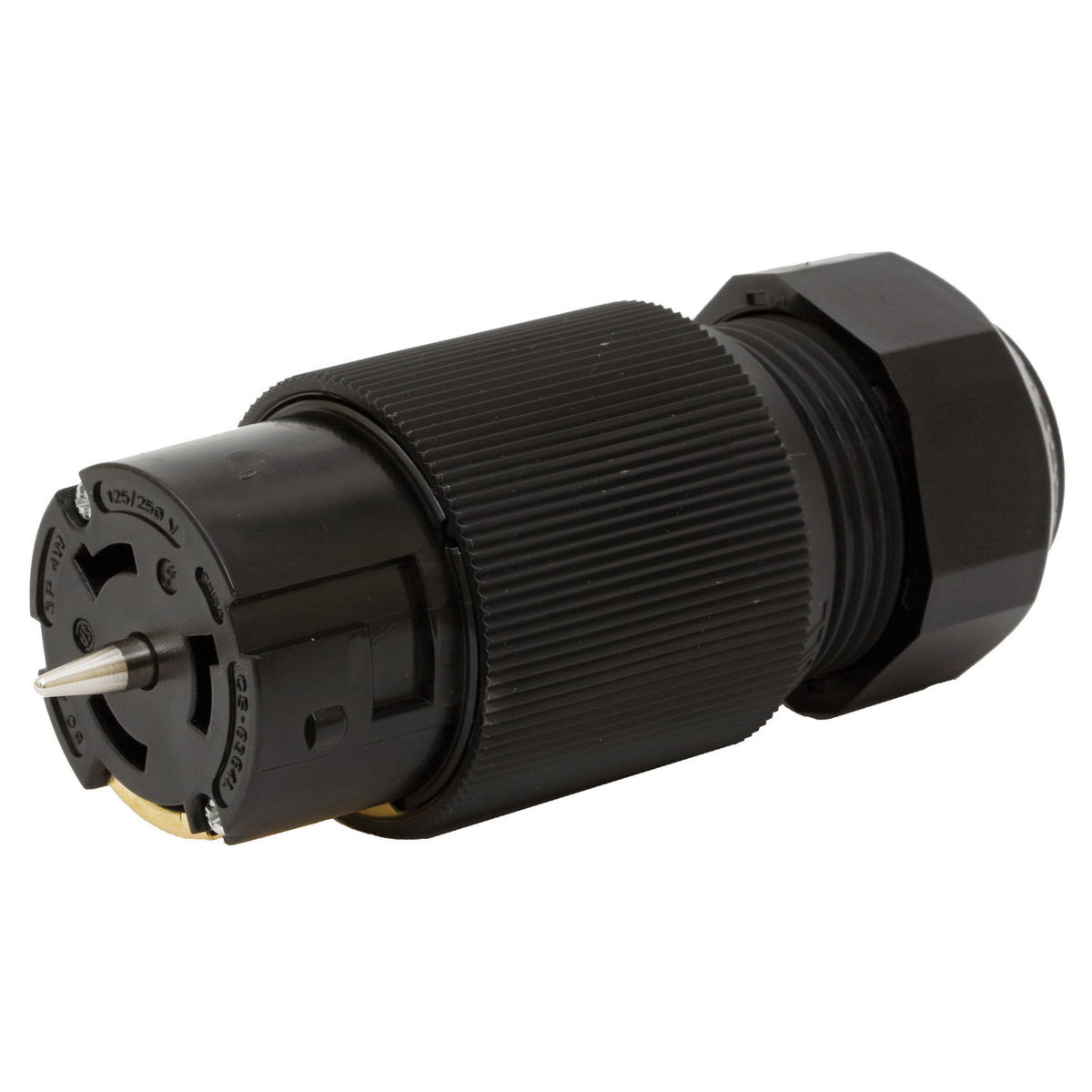

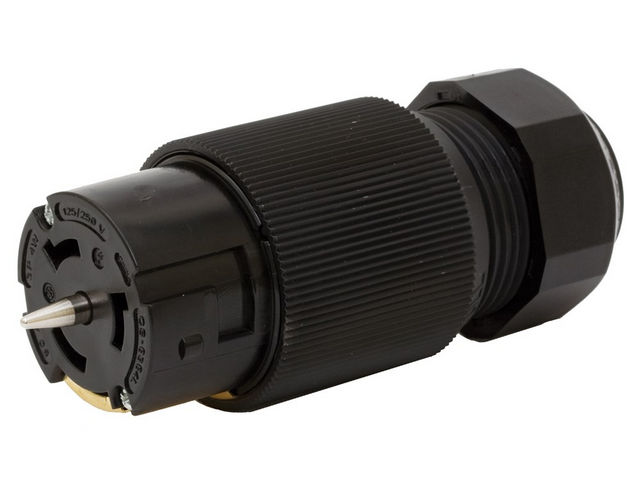

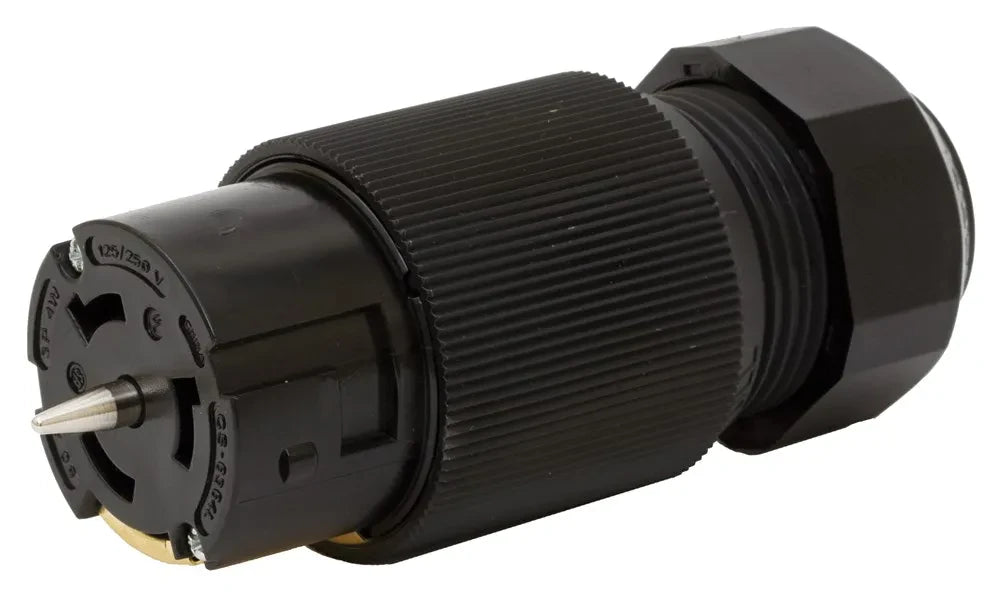

The BRYANT CS6364L is a heavy-duty industrial locking connector. Rated at 50A and 125/250V, this 3-pole, 4-wire grounding connector features screw terminals and an insulated body. It is suitable for indoor dry environments unless protected by additional means. Commonly used for temporary power cables and replacement parts.

• Amperage Rating: 50 A
• Voltage Rating: 125/250 VAC
• 4-Wire Grounding

Product Highlights

Heavy-duty locking connector with screw terminals, suitable for industrial applications and temporary power solutions.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CS6364L
• Country of Origin: United States

Technical Specifications

• Country of Origin: China
• Dimensions: 5.50 in x 2.40 in x 2.40 in
• Width: 2.500 in
• Each - Width: 2.500 in
• Height: 2.40 in
• Length: 5.50 in
• Amperage Rating: 50 A
• Application: Heavy Duty Industrial
• Color: Black
• Conductor Range: #6 AWG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Number of Conductors: 4-Wire Grounding
• Number of Poles: 3-Pole
• Size: 5.50 in x 2.40 in x 2.40 in
• Special Features: Standard Product
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Locking Connector
• Voltage Rating: 125/250 VAC
• Connectivity: Screw Terminals
• Display Size: Standard
• Style: Heavy Duty
• Wire Size: #18 AWG to #8 AWG
• Description - Invoice: LKG CONN, 50A 125/250V, 3P4W, LC
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: CS6364N
• Material - Mounting Hardware: Cord Mounted
• Cord Diameter: 0.650-1.200 in
• Current Rating: 50 A
• Series: Replacement Part
• Base Unit of Measure: EA
• BOX SIZE: 7.000x15.100x12.900 (in)
• Carton - Gross Weight per Pack: 18.900 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585320687
• Carton - Total Units: 30 EA
• Case Weight: 8.150 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70783585320686
• Pallet Height: 42.000 in
• Pallet Length: 48.000 in
• Pallet Weight: 1007.100 lb.
• Pallet Width: 40.000 in
• Brand: Bryant
• SKU: CS6364L
• Mfr. Part Number: CS6364L
• UPC Code: #783585320687
• Weight: 0.63 lb
• Input Voltage: 125/250
• Model: CS6364L
• Output Voltage: 250 V
• NEMA Rating: Non-NEMA
• Connection: Screw Terminals
• Standard: UL498
• Sub Brand: 50A Twist-Lock
