Bryant CRS20I Duplex Receptacle 20A 125V 5-20R

Product Description

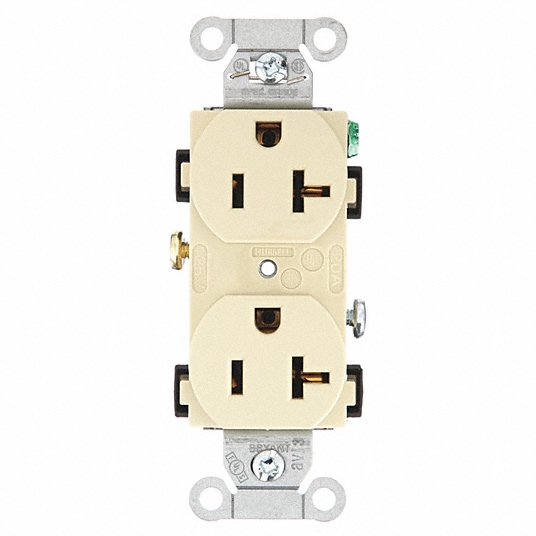

The BRYANT CRS20I is a commercial grade duplex receptacle rated for 20A and 125V. Designed for standard installations, this 2-pole, 3-wire grounding receptacle provides a basic, non-locking power connection where electrical performance and durability are required.

• Commercial Specification Grade
• 2-Pole 3-Wire Grounding
• Side Wired Only

Product Highlights

The BRYANT CRS20I receptacle is ideal for commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CRS20I
• Country of Origin: China

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CRS20I
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: 1-Phase Duplex Self-Grounding Standard Traditional
• UPC: 781786161078
• Amperage Rating: 20 A
• Connectivity: Side Wired Only
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Ivory
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 4.1 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Overall Depth: 1.1 in
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Side
• UNSPSC: 39121406
• Amperage: 20A
• Number of Poles: 2P
• Ground: Grounding
• NEMA Configuration: 5-20R
• Application Grade: Commercial
• Frequency Rating: 60 Hz
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Side Wire
• Manufacturer Name: Hubbell
• Country of Origin: CN
