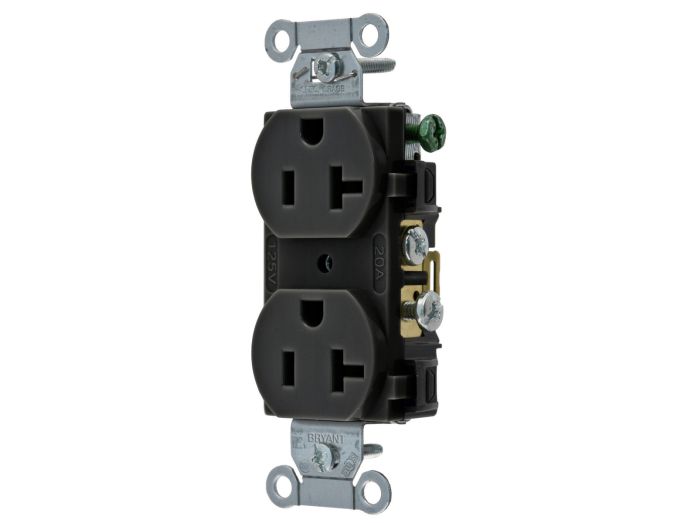

Bryant CRS20BLK Duplex Receptacle 20A 125V 5-20R

Product Description

The BRYANT CRS20BLK is a commercial grade duplex receptacle designed for standard installations requiring electrical performance and durability. Rated at 20A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-20R NEMA configuration and side wiring.

• Commercial Specification Grade
• 2-Pole 3-Wire Grounding
• Side Wired Only

Product Highlights

The BRYANT CRS20BLK receptacle provides basic, non-locking power connections for commercial applications, ensuring reliable electrical performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CRS20BLK
• Country of Origin: China

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CRS20BLK
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786161085
• Amperage Rating: 20 A
• Connectivity: Side Wired Only
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Brand: BRYANT
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: None
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Black
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Voltage: 125 VAC
• Wire Connection Type: Screw Terminals
• Wiring Method: Side
• UNSPSC: 39121406
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
