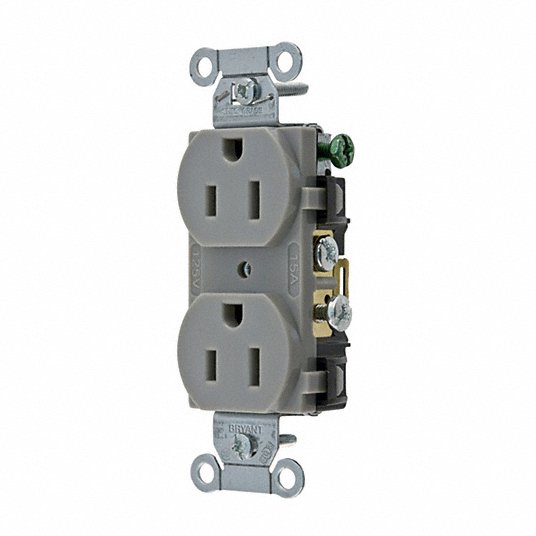

Bryant CRS15GRY Duplex Receptacle 15A 125V 5-15R

Product Description

The BRYANT CRS15GRY is a commercial grade duplex receptacle, designed for standard installations where electrical performance and durability are required. Rated at 15A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-15R NEMA configuration. It is suitable for indoor use unless protected by additional means.

• Duplex
• Commercial Grade
• 15A 125V

Product Highlights

Commercial grade duplex receptacle with 15A and 125V ratings, ideal for standard indoor power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CRS15GRY
• Country of Origin: China

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CRS15GRY
• Color: Gray
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786161016
• Dimensions: 3.28 in x 1.38 in x 1.07 in
• Height: 1.07 in
• Length: 3.28 in
• Width: 1.38 in
• Amperage Rating: 15 A
• Connectivity: Side Wired Only
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: No
• Face Plate Height: 2.7 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Gray
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 1.1 in
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Voltage: 125V
• Mount Hole Center-to-Center Height: 4.1 in
