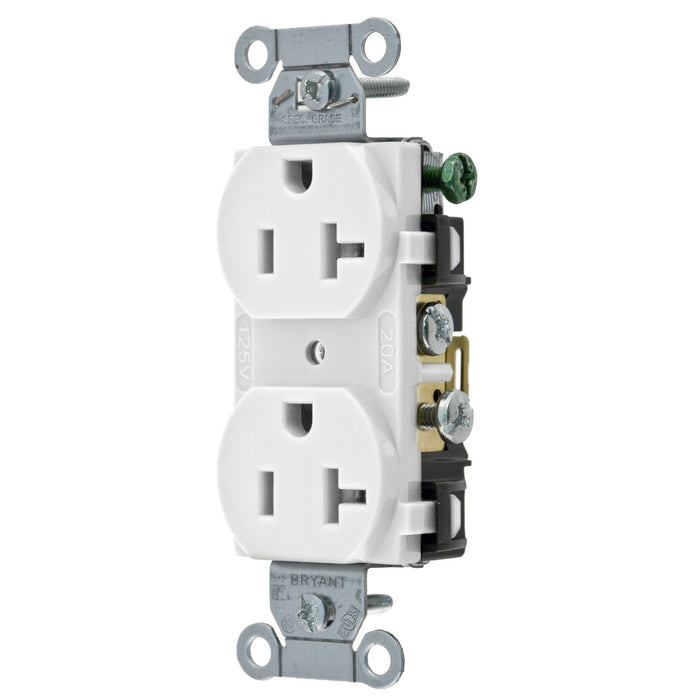

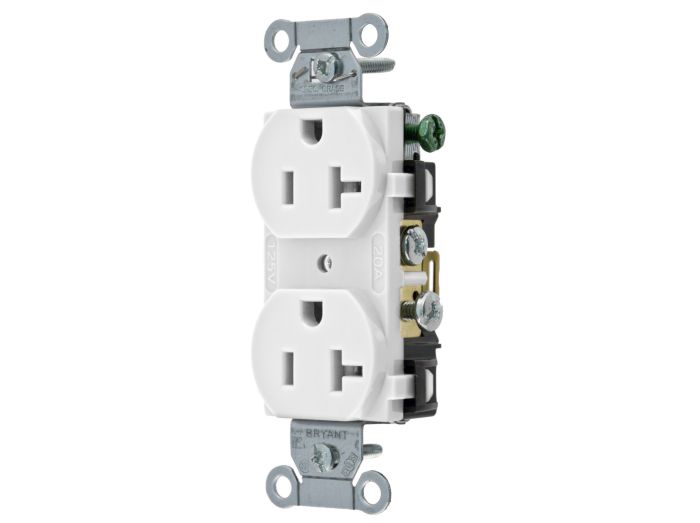

Bryant CBRS20W Duplex Receptacle Commercial Grade 20A 125V 5-20R

Product Description

The BRYANT CBRS20W is a commercial-grade duplex receptacle designed for reliable power delivery. Rated at 20A and 125V with a 5-20R NEMA configuration, this receptacle is suitable for commercial applications. It features grounded wiring for enhanced safety and a durable composite body.

• Commercial Grade
• 20A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

Ideal for commercial settings, this receptacle provides a seamless power supply to multiple devices simultaneously.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS20W
• Country of Origin: United States

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CBRS20W
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786161191
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Manufacturer Part Number: CBRS20W
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Product Name: Bryant Duplex Receptacle Commercial Grade 20A 125V 5-20R White (CBRS20W)
• Brand: Bryant
• SKU: CBRS20W
• Mfr. Part Number: CBRS20W
• Housing Color: White
• UPC Code: #781786161191
• Amperage: 20
• Body Material: Nylon
• Flanged: No
• Grade: Commercial
• Grounding Style: Grounded
• Mount Type: Flush Mount
• Number of Phases: True
• Standards: CSA Certified; UL Listed
• Wiring Method: Back & Side
• Hazardous Materials: No, oK to Ship Via Air
• Material Safety Data Sheet (MSDS) Required: No
• UNSPSC: 39121406
