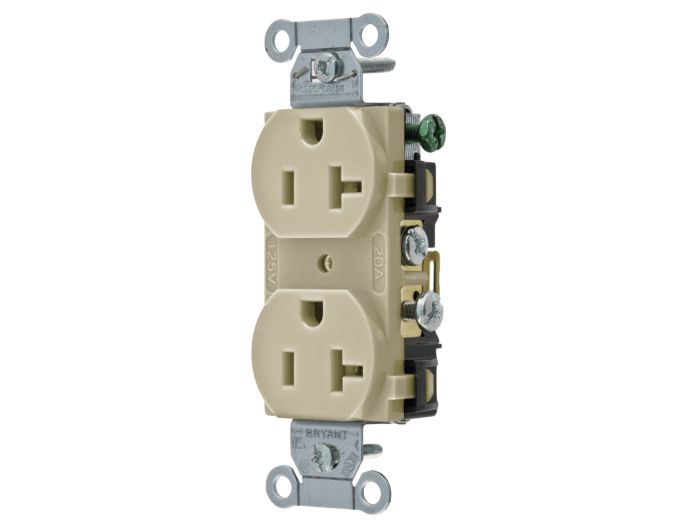

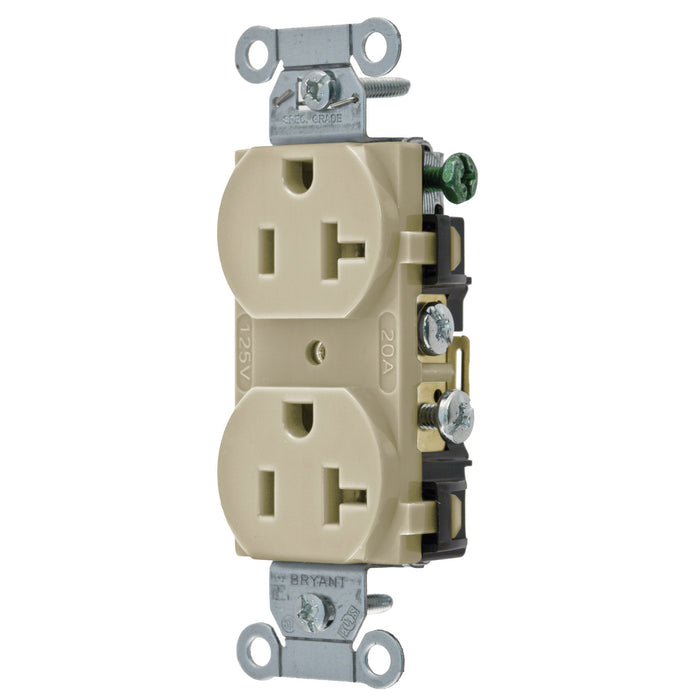

Bryant CBRS20I Duplex Receptacle Commercial Grade 20A 125V 5-20R

Product Description

The BRYANT CBRS20I is a commercial grade duplex receptacle. Rated for 20A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-20R NEMA rating. It is suitable for indoor dry environments unless protected by additional means.

• Commercial Specification Grade
• Back and Side Wired connectivity
• Composite material

Product Highlights

The BRYANT CBRS20I is ideal for commercial applications requiring a durable and reliable duplex receptacle.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS20I
• Country of Origin: US

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CBRS20I
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786161177
• Height: 1.07 in
• Length: 3.28 in
• Width: 1.38 in
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Brand: BRYANT ELECTRIC
• MPN: CBRS20I
• Manufacturer Part Number: CBRS20I
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Ivory, Single Pack
• Voltage: 125 VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
