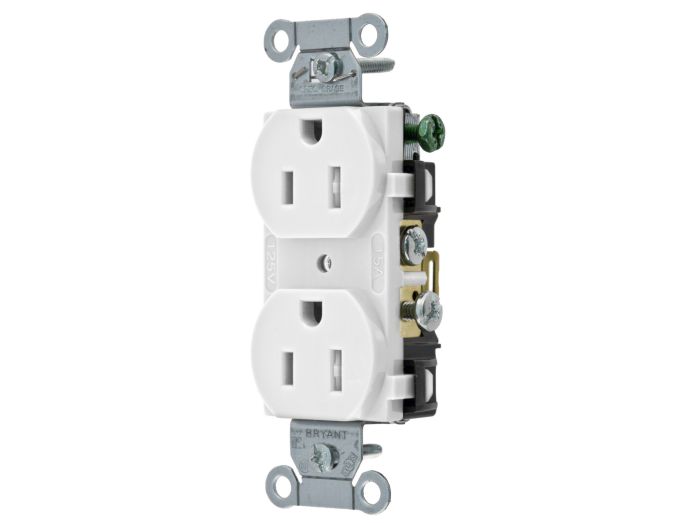

Bryant CBRS15WTR receptacle straight blade commercial grade 15A 125V

Product Description

The Bryant CBRS15WTR is a straight blade, commercial-grade receptacle. This duplex receptacle is tamper-resistant and designed for indoor use in commercial settings. Rated at 15A and 125V, it features a 2-pole, 3-wire grounding configuration and 5-15R NEMA rating. The receptacle is constructed from composite material and supports back and side wiring with screw terminals.

• Duplex receptacle
• Tamper-resistant commercial grade
• 15A 125V, 2-Pole 3-Wire Grounding, 5-15R

Product Highlights

The Bryant CBRS15WTR is ideal for commercial applications requiring a durable, tamper-resistant receptacle. It supports both back and side wiring.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS15WTR
• Country of Origin: China

Technical Specifications

• Manufacturer: Bryant
• Manufacturer #: CBRS15WTR
• Catalog Number: CBRS15WTR
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786410657
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Voltage: 125VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Special Properties: Tamper Resistant
• Approvals: CSA, UL
• Minimum Wire Size: 14 AWG
• Maximum Wire Size: 12 AWG
• Item: Straight Blade Receptacle
• Wire Connection Type: Screw Terminals
• Wiring Method: Back, Side
• Grounding: Grounded
• Housing Color: White
• Mount Type: Flush
• Standards: CSA Certified, Federal Specification, UL Listed
• Resistance Properties: Corrosion Resistant, Tamper Resistant
• Flange Type: Non-Flanged
• Sub-Category: Duplex Receptacles
• Weather Resistant: No
• HP: 1/2 hp
• Outlet Type - Plugs and Receptacles: Standard Duplex
• Number of Gangs: 1
• Mounting Type: Flush
• Mounting Type - Plugs and Receptacles: Flush
• Surge Suppression: No
• Application Environment: Commercial
• Weather Resistant - Plugs and Receptacles: No
• Power Indicator: No
• Special Features: Corrosion resistant
• Tamper Resistant: Yes
• Outlet Type: Duplex
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R
• Corrosion Resistant: Yes
• Includes: Mounting Hardware
• Housing Material: Composite
• AFCI: No
• For Location: Indoor
• Market: Commercial
• Surge Protection: No
• Cover Type: No Cover
• Connection Orientation: Straight
• Grade: Federal Specification
• GFCI: No
• Horsepower Rating: 1/2 hp
• Polarized: Yes
• Includes Mounting Hardware: Yes
