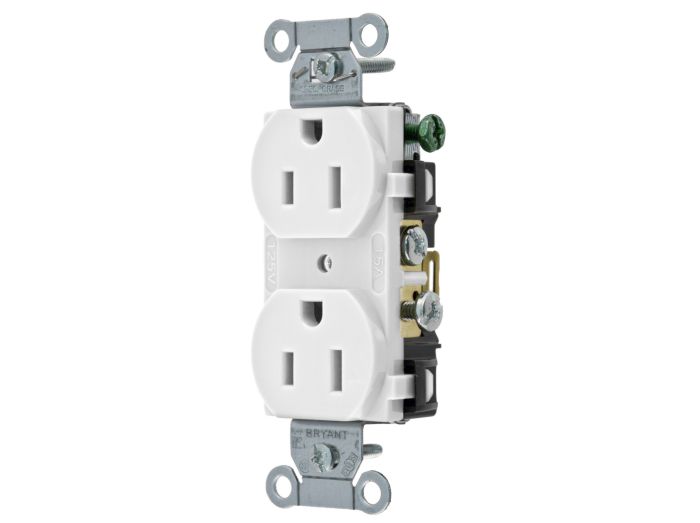

Bryant CBRS15W Duplex Receptacle 15A 125V Single Pack

Product Description

The BRYANT CBRS15W is a commercial-grade duplex receptacle. Rated at 15A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-15R NEMA rating. Designed for indoor use unless protected, it is suitable for commercial applications and standard-sized electrical wiring.

• Commercial Specification Grade
• Back and Side Wired connectivity
• RoHS compliant

Product Highlights

This BRYANT duplex receptacle is ideal for commercial applications requiring a durable and reliable power outlet.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS15W
• Country of Origin: Mexico

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CBRS15W
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786161146
• Dimensions: 3.28 in x 1.38 in x 1.07 in
• Display Size: Standard Sized Product
• Height: 1.07 in
• Length: 3.28 in
• Width: 1.38 in
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Duplex Receptacle
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Number of Outlets: 2
• Outlet Configuration: Duplex
• Application Grade: Commercial
• Wiring Method: Back & Side
