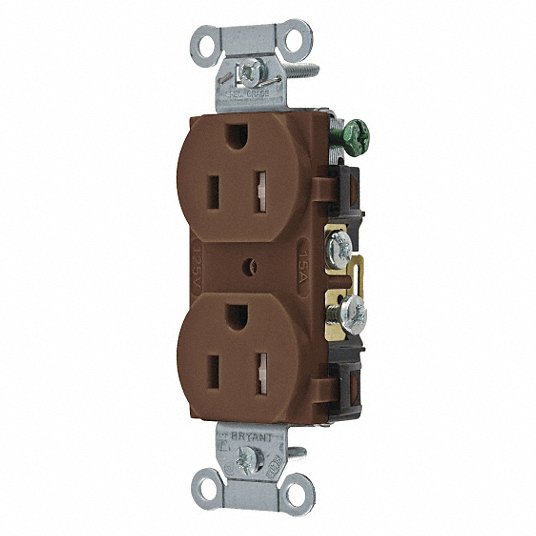

Bryant CBRS15TR Duplex Receptacle 15A 125V

Product Description

The BRYANT CBRS15TR is a general purpose duplex receptacle, designed for standard installations where electrical performance and durability are required. This receptacle provides basic, non-locking power connections without added protection or monitoring features. It is a tamper-resistant commercial grade receptacle.

• Tamper-Resistant Commercial Grade
• 15A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

The BRYANT CBRS15TR duplex receptacle is ideal for commercial applications. It features a tamper-resistant design and is built to last.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS15TR
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: CBRS15TR
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No Cover
• Current Rating: 15 A
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Brown
• Housing Material: Composite
• Includes: Mounting Hardware
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Poles: 2
• Number of Wires: 3
• Phase: Single
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Tamper Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Application: Commercial Specification Grade
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786410602
• Connectivity: Back and Side Wired
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Mounting Type - Plugs and Receptacles: Flush
• Outlet Type: Duplex
• Voltage: 125VAC
• Tamper Resistant: Yes
• HP: 1/2 hp
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R
• Power Indicator: No
• Application Environment: Commercial
• Corrosion Resistant: No
• Outlet Type - Plugs and Receptacles: Standard Duplex
• Weather Resistant - Plugs and Receptacles: No
• Sub-Category: Duplex Receptacles
• Weather Resistant: No
• Mounting Type: Flush
• Wiring Method - Plugs and Receptacles: Back and Side
• Resistance Properties: Tamper Resistant
• Includes Mounting Hardware: Yes
• Receptacle Connection Orientation: Straight
