Bryant CBRS15I Duplex Receptacle 15A 125V 5-15R

Product Description

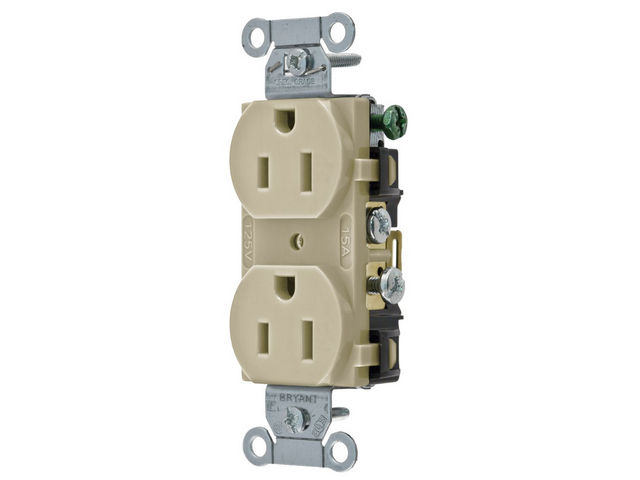

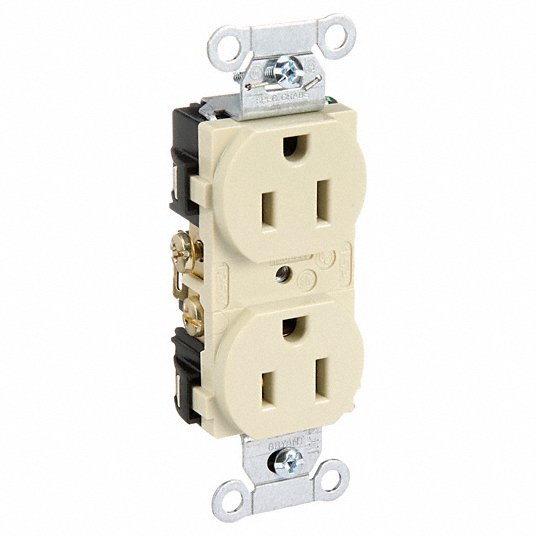

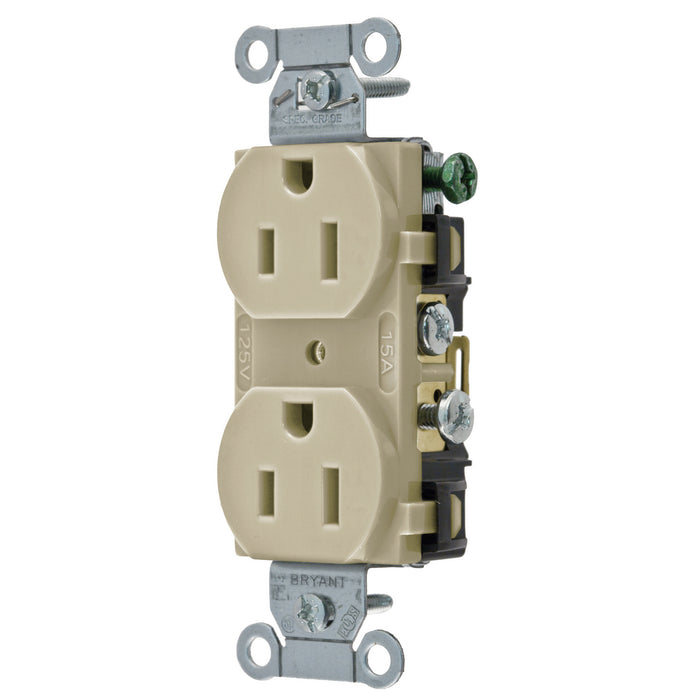

The BRYANT CBRS15I is a commercial grade duplex receptacle. Rated at 15A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-15R NEMA rating. Designed for standard installations where electrical performance and durability are required.

• Commercial Grade
• Standard Product
• General purpose receptacles provide basic, non-locking power connections

Product Highlights

The BRYANT CBRS15I duplex receptacle is ideal for commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS15I
• Country of Origin: China

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CBRS15I
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786161122
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Wattage: 1875
• Number Of Poles: 2
• Number Of Wires: 3
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Brand: BRYANT
• Connection Orientation: Straight
• Contact Material: Brass
• Cover: No
• Cover Type: No
• Face Plate Height: 2.7 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Ivory
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 4.1 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 1.1 in
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Grounding Style: Grounded
• Number Of Phases: 1
• Body Material: Nylon
• Nema Configuration: 5-15R
• UNSPSC Code: 39121406
