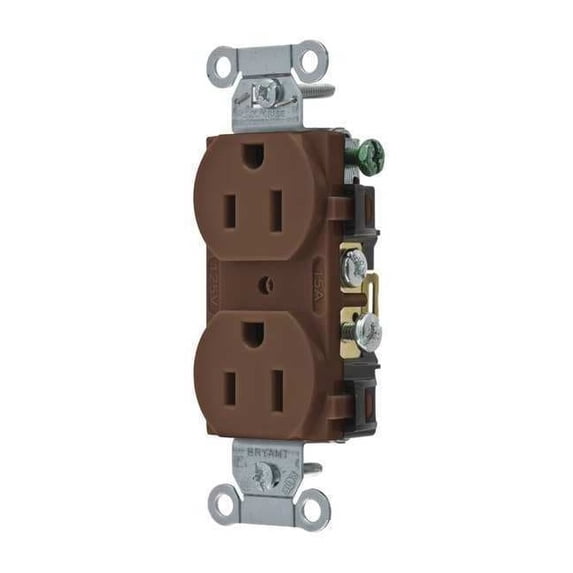

Bryant CBRS15 Duplex Receptacle 15A 125V 5-15R

Product Description

The BRYANT CBRS15 is a commercial grade duplex receptacle. This 15A 125V receptacle is designed for standard installations where electrical performance and durability are required. It provides basic, non-locking power connections without added protection or monitoring features.

• Commercial Grade
• Duplex
• 15A 125V

Product Highlights

The BRYANT CBRS15 receptacle is ideal for commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS15
• Country of Origin: China

Technical Specifications

• Application: Electrical Wiring, Home/Garden, Commercial, Outlet
• Catalog Number: CBRS15
• Color: Brown
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786161108
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: No
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Brown
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Amps: 15 Amps
• Features: Impact-Resistant
• Size: #14 AWG to #12 AWG
• Depth: 1.1 in
• Mounting Type: Flush
• Voltage: 125VAC
• Plug Type: B
• Ground: Grounding
• Number of Switches: 0
• Material Type: Nylon
• Plate Design: Duplex Outlet
• Item Length: 4.250
• Port Type: Power
• Current Type: AC
• Outlet Style: Double
• Number of Ports: 2
• Decorative Style: Traditional
• Amperage: 15A
• Finish: Brown
• Item Width: 1.750
• NEMA Number: 5-15R
• Maximum Amperage: 15 A
• Number of Phases: 1
• Device Type: Duplex Receptacle
• Thermoplastic: Thermoplastic
• Orientation: Horizontal/Vertical
• Electrical Connection: Screw Terminal
• Operation Method: Outlet
• Model: CBRS15
• Additional Features: Straight Blade
• Outlet Configuration: Duplex
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, Brown, Single Pack
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Number of Throws: 0
