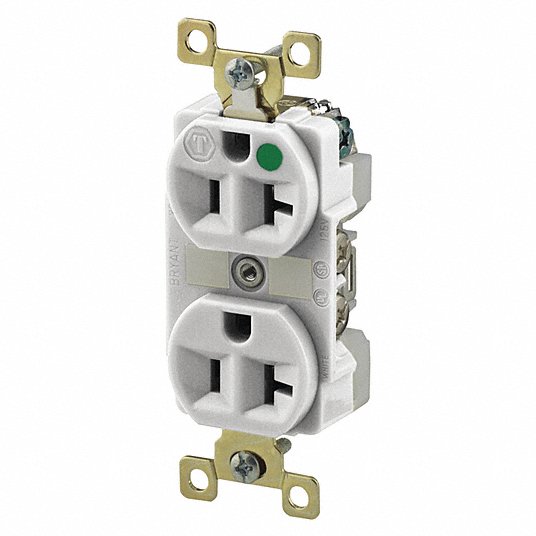

Bryant BRY8300WL Duplex Receptacle Hospital Grade Fed. Spec., 125V AC, 20 A, 5-20R

Product Description

The BRYANT BRY8300WL is a duplex receptacle, hospital grade Fed. Spec., designed for industrial applications. Rated at 125V AC and 20A, this 2-pole, 3-wire receptacle features screw terminals and back/side wiring. It includes mounting hardware and is suitable for indoor use in outlet boxes.

• Night Light
• Illuminated face
• Hospital Grade

Product Highlights

This receptacle is ideal for industrial and hospital settings, providing a safe and reliable power connection with added features like a night light and illuminated face.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8300WL
• Country of Origin: China

Technical Specifications

• AFCI: No
• Brand: BRYANT
• Connection Orientation: Straight
• Contact Material: Copper
• Cover: No
• Cover Type: No
• Country of Origin: China
• Current Rating: 20 A
• Face Plate Height: 2.7 in
• Features: Night Light, Illuminated, Hospital Grade
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Market: Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Overall Depth: 1.2 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Duplex
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Maximum Amperage: 20 A
• Model: BRY8300WL
• Outlet Configuration: Duplex
• Application: Industrial, Commercial, Electrical Wiring, Home/Garden, Outlet, Hospital Grade
• Type: Duplex Receptacle
• Voltage: 125 V
• Number in Pack: 1
• Length: 3.28 in
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Special Features: Lighted Face
• Wire Size: #14 AWG to #12 AWG
• Connectivity: Back and Side Wired
• Nema Rating: 5-20R
• Series: Hospital Grade
• Wattage: 2500
• Voltage Rating Description: 125 V
• Width: 1.54 in
• Style: Finder Groove Face
• Harmonization Code: 8536698000
• MSDS Flag: No
• Material - Mounting Hardware: Screw Mounting
• Material: Composite
• Base Unit of Measure: EA
• Certifications: EU RoHS Indicator
