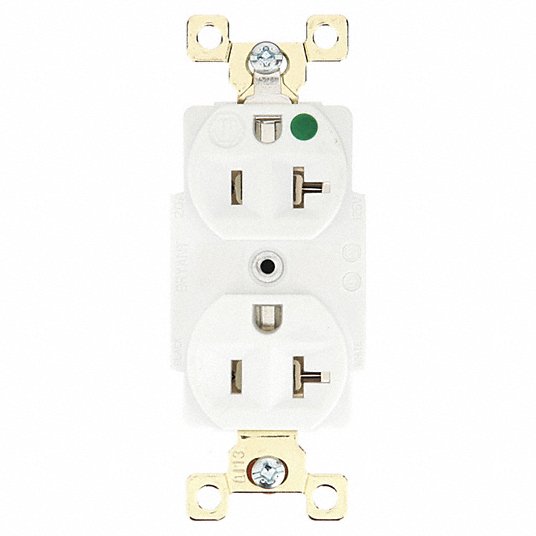

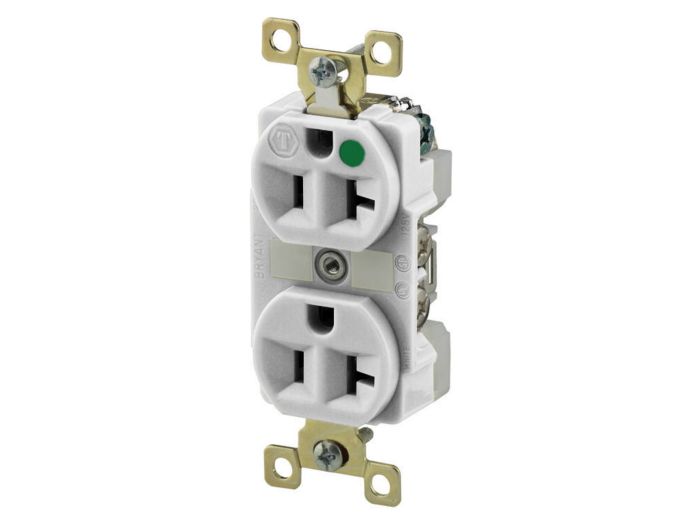

Bryant BRY8300W Duplex Receptacle 20A 125V 5-20R Single Pack

Product Description

The BRYANT BRY8300W is a duplex, hospital-grade receptacle designed for standard installations where electrical performance and durability are required. Rated for 20A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-20R NEMA configuration.

• Duplex
• Hospital Grade
• 20A 125V

Product Highlights

This receptacle provides reliable power connections for hospital and industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8300W
• Country of Origin: China

Technical Specifications

• Application: Hospital Grade
• Catalog Number: BRY8300W
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Hospital Grade
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786005693
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Voltage Rating Description: 125 V
• Number Of Poles: 2
• Number Of Wires: 3
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Brand: BRYANT
• Manufacturer Part Number: BRY8300W
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Copper
• Cover Type: No
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: White
• Housing Material: Composite
• IP Rating: IP20
• Includes: Grounding Screw/Clip; Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Operating Temperature: 140 00b0F
• Maximum Wire Size: 12 AWG
• Minimum Operating Temperature: -40 00b0F
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance Properties: Corrosion Resistant, Heat Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• UL 94 Flammability Rating: V-2
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Hospital Grade
