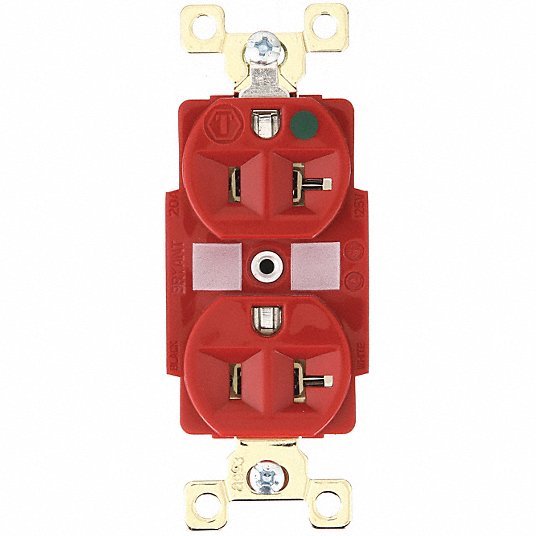

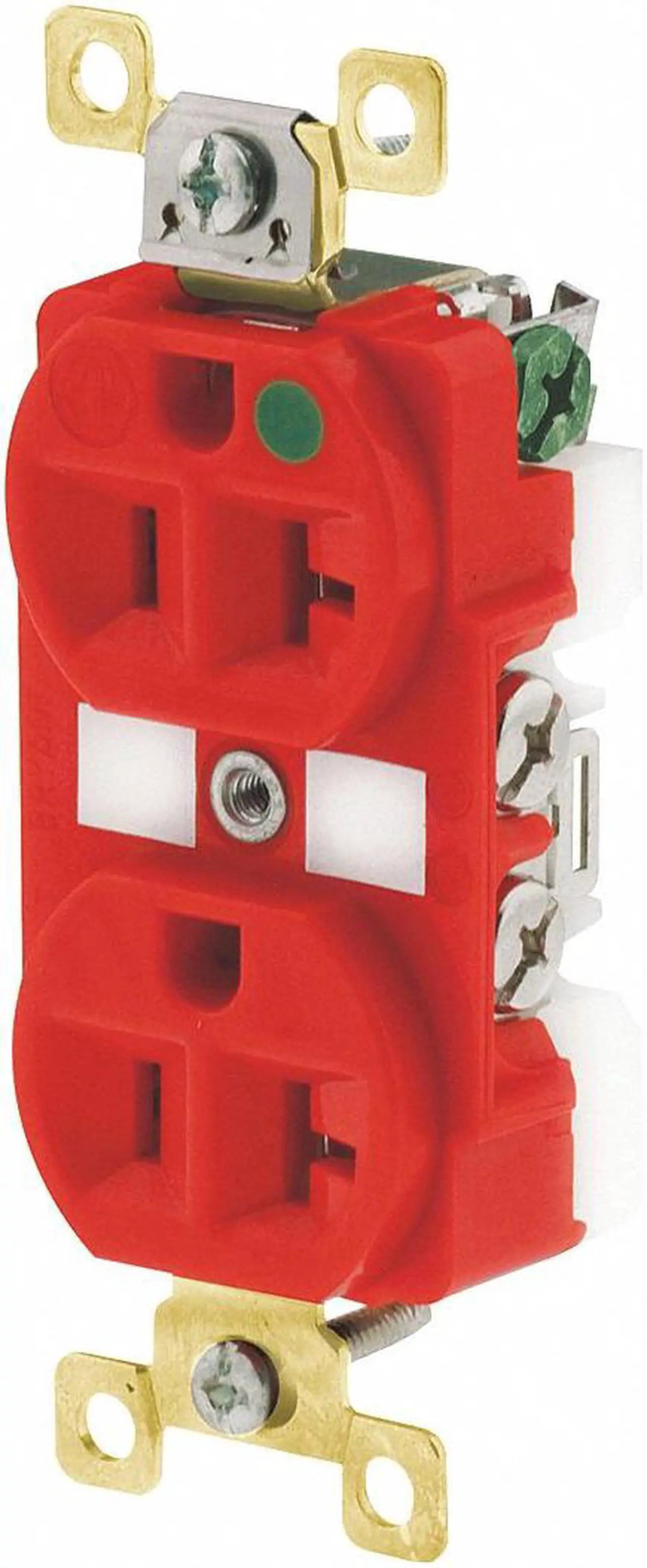

Bryant BRY8300RED Duplex Hospital Grade Receptacle 20A 125V 5-20R

Product Description

The BRYANT BRY8300RED is a duplex, hospital-grade receptacle designed for standard installations where electrical performance and durability are required. This 20A 125V receptacle provides basic, non-locking power connections. It is designed for indoor use in dry environments unless protected by additional means.

• Duplex receptacle
• Hospital Grade
• 20A 125V

Product Highlights

The BRYANT BRY8300RED is a reliable choice for hospital-grade applications, ensuring safe and consistent power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8300RED
• Country of Origin: China

Technical Specifications

• Application: Hospital Grade
• Catalog Number: BRY8300RED
• Color: Red
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Hospital Grade
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786005686
• Dimensions: 3.28 in x 1.54 in x 1.16 in
• Display Size: Standard Sized Product
• Height: 1.16 in
• Length: 3.28 in
• Weight: 0.25 lb
• Width: 1.54 in
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2
• Number Of Wires: 3
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Model: BRY8300RED
• Connection Orientation: Straight
• Contact Material: Copper
• Cover: No
• Cover Type: No Cover
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Red
• Housing Material: Composite
• Includes: Grounding Screw/Clip; Mounting Hardware
• Includes Mounting Hardware: Yes
• IP Rating: IP20
• Market: Industrial
• Maximum Operating Temperature: 140 °F
• Maximum Wire Size: 12 AWG
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 1.2 in
• Polarized: Yes
• Receptacle Type: Duplex
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• UL 94 Flammability Rating: V-2
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• AFCI: No
• UNSPSC: 39121406
