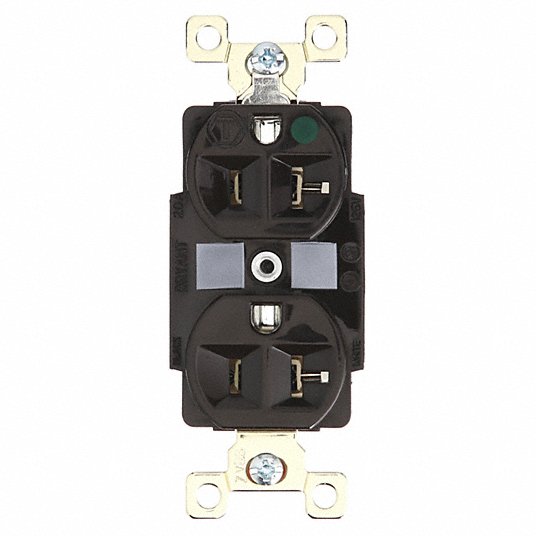

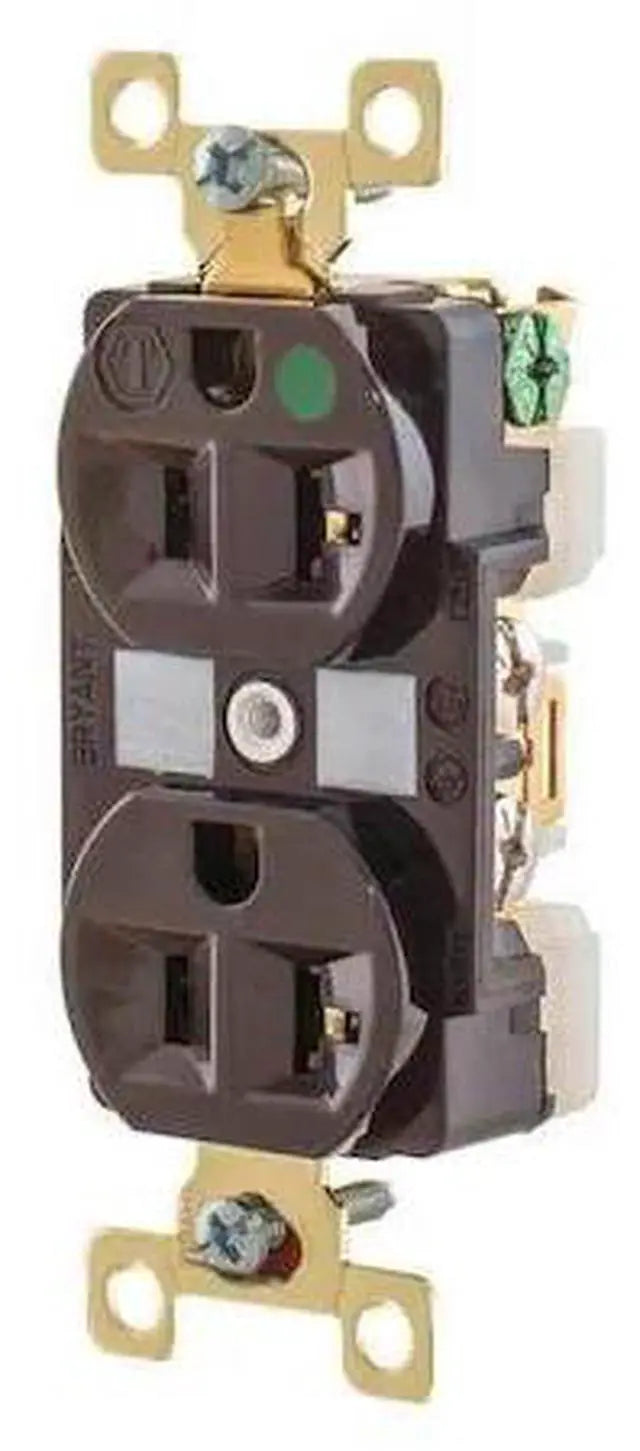

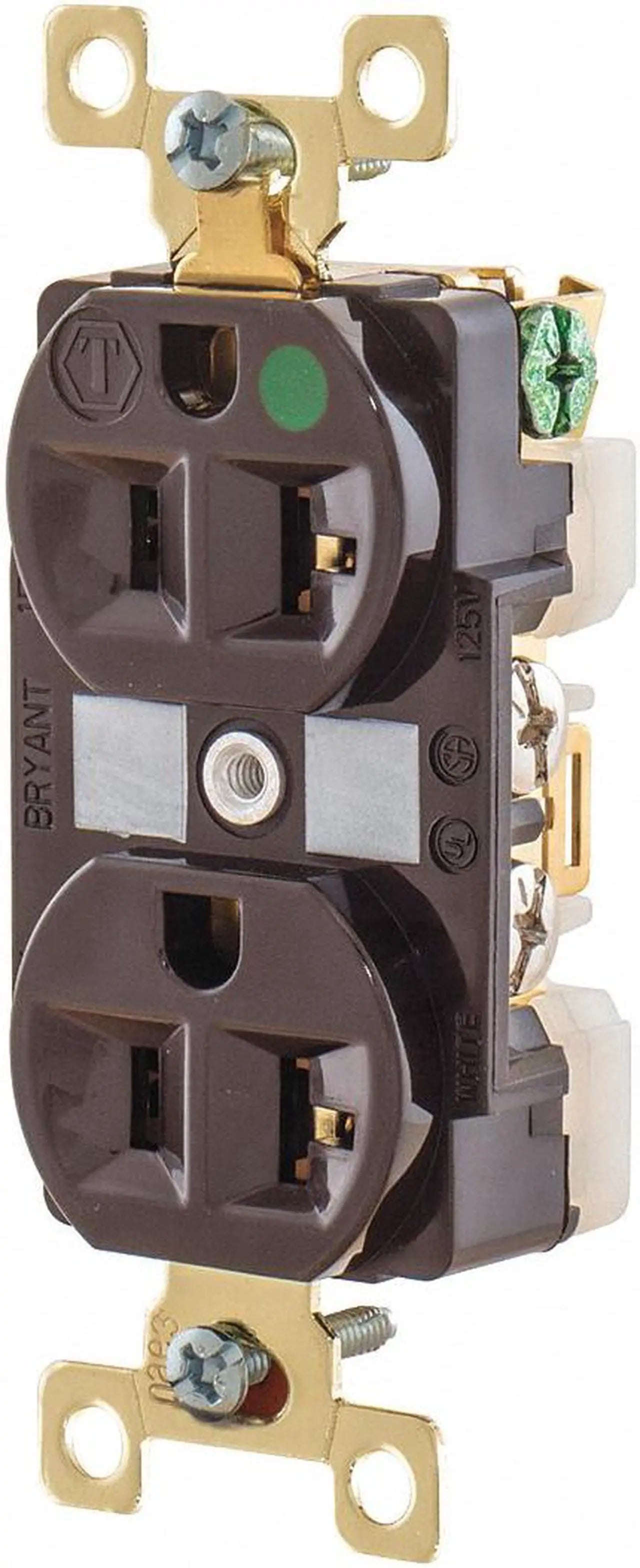

Bryant BRY8300 Receptacle 20A 125V Hospital Grade

Product Description

The Bryant BRY8300 is a 20A 125V hospital-grade receptacle. This duplex receptacle is designed for standard installations where electrical performance and durability are required. It features 2-pole 3-wire grounding and a 5-20R NEMA rating for reliable and safe electrical connections.

• Duplex
• Hospital Grade
• 20A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

This receptacle provides basic, non-locking power connections without added protection or monitoring features.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8300
• Country of Origin: China

Technical Specifications

• Application: Hospital Grade
• Catalog Number: BRY8300
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Hospital Grade
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786005655
• Dimensions: 3.28 in x 1.54 in x 1.16 in
• Display Size: Standard Sized Product
• Height: 1.16 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.54 in
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Wattage: 2500
• Number Of Poles: 2
• Number Of Wires: 3
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Carton Quantity: 10
• Brand: BRYANT
• Compatible Devices: All
• Voltage: 125
• Connector Type: Plug-In
• Total Power Outlets: 2
• Specification Met: NEMA
• Unit Count: 1.0 Count
• Item Weight: 0.2 Pounds
• Item Type Name: Electrical Receptacle, Electrical Outlet
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Copper
• Cover: No
• Cover Type: No
• Country of Origin: China (subject to change)
• Face Plate Height: 1.3 in
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Material: Composite
• IP Rating: IP20
• Includes: Grounding Screw/Clip; Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Operating Temperature: 140 °F
• Maximum Wire Size: 12 AWG
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 1.2 in
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance Properties: Corrosion Resistant, Heat Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Terminals: Screw
• UL 94 Flammability Rating: V-2
• UNSPSC: 39121406
• Wire Connection Type: Screw
• Wiring Method: Back/Side
• Application Grade: Hospital
