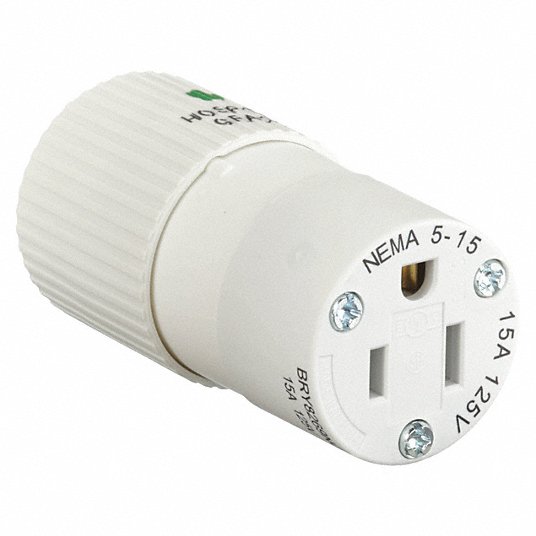

Bryant BRY8269NC Straight Blade Connector 15A 125V 5-15R

Product Description

The BRYANT BRY8269NC straight blade connector features terminations with screws that tighten down on conductors to secure them in place. These connectors make inline connections with plugs to supply equipment with power. It is suitable for dry environments and ideal for commercial and industrial use.

• Hospital Grade
• NEMA 5-15R configuration
• Resistance Properties: Chemical Resistant, Dust Ignition Proof, Impact Resistant

Product Highlights

The BRYANT straight blade connector is a reliable choice for connecting electrical equipment. It is chemical, dust, and impact resistant.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8269NC
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: BRY8269NC
• Brand: BRYANT
• Cap Type: No Cap or Cover
• Compatible with Series: Hubbell Straight Blade
• Current Rating: 15 A
• For Environment: Dry
• For Maximum Cable Diameter: 0.66 in
• For Minimum Cable Diameter: 0.25 in
• Grade: Hospital Grade
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: White
• Housing Material: Composite
• IP Rating: Not Rated
• Maximum Operating Temperature: 75 00b0C
• Maximum Wire Size: 10 AWG
• Minimum Operating Temperature: -40 00b0F
• Minimum Wire Size: 14 AWG
• NEMA Receptacle Configuration: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Overall Length: 2.95 in
• Phase: Single
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Dust Ignition Proof; Impact Resistant
• Shrouded: Yes
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Type: Straight Blade Devices
• Amps: 15 Amps
• Volts: 125 VAC
• Has nrtl listing certification: N
