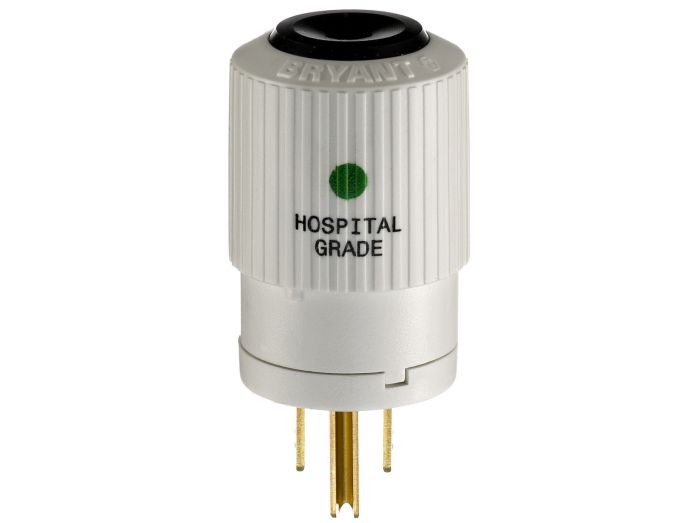

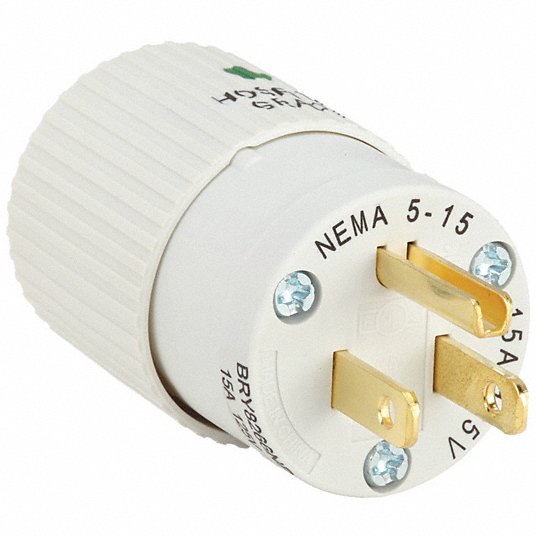

Bryant BRY8266NP straight blade plug 15A 125V

Product Description

The Bryant BRY8266NP is a straight blade plug with terminations with screws that tighten down on conductors to secure them in place. It makes inline connections with receptacles and connectors to supply equipment with power. Rated at 15A and 125V AC, this plug is ideal for various applications.

• Wiring style standard
• Hospital grade
• Impact resistant

Product Highlights

The Bryant straight blade plug ensures secure connections and reliable power supply for equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8266NP
• Country of Origin: China

Technical Specifications

• Manufacturer: Bryant Electric
• Manufacturer #: BRY8266NP
• Parts Town #: BYNTBRY8266NP
• Replaced by PT #: CRRBRY8266NP
• Units: Each
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Male Plug, Heavy Duty, Hospital Grade, Straight, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, White, Single Pack
• Current Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Net Weight: 0.125 lbs
• Gross Weight: 0.125 lbs
• Body Length: 2.18 in
• Compatible Series: Hubbell Straight Blade
• Connection Orientation: Straight
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.245 in
• Grade: Hospital Grade
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Thermoplastic
• IP Rating: Not Rated
• Insulation Material: Thermoplastic
• NEMA Plug Configuration: 5-15P
• Number of Blades: 3
• Outside Diameter: 1.52 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Impact Resistant
• Standards: CSA Certified; UL Listed
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• MPN: BRY8266NP
• Material: Nylon
