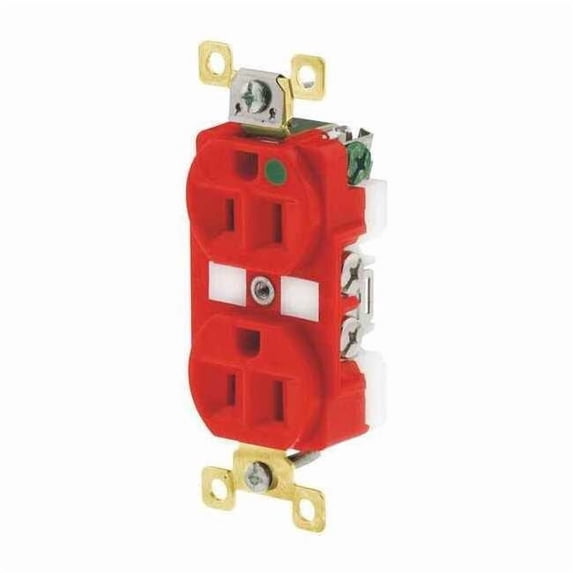

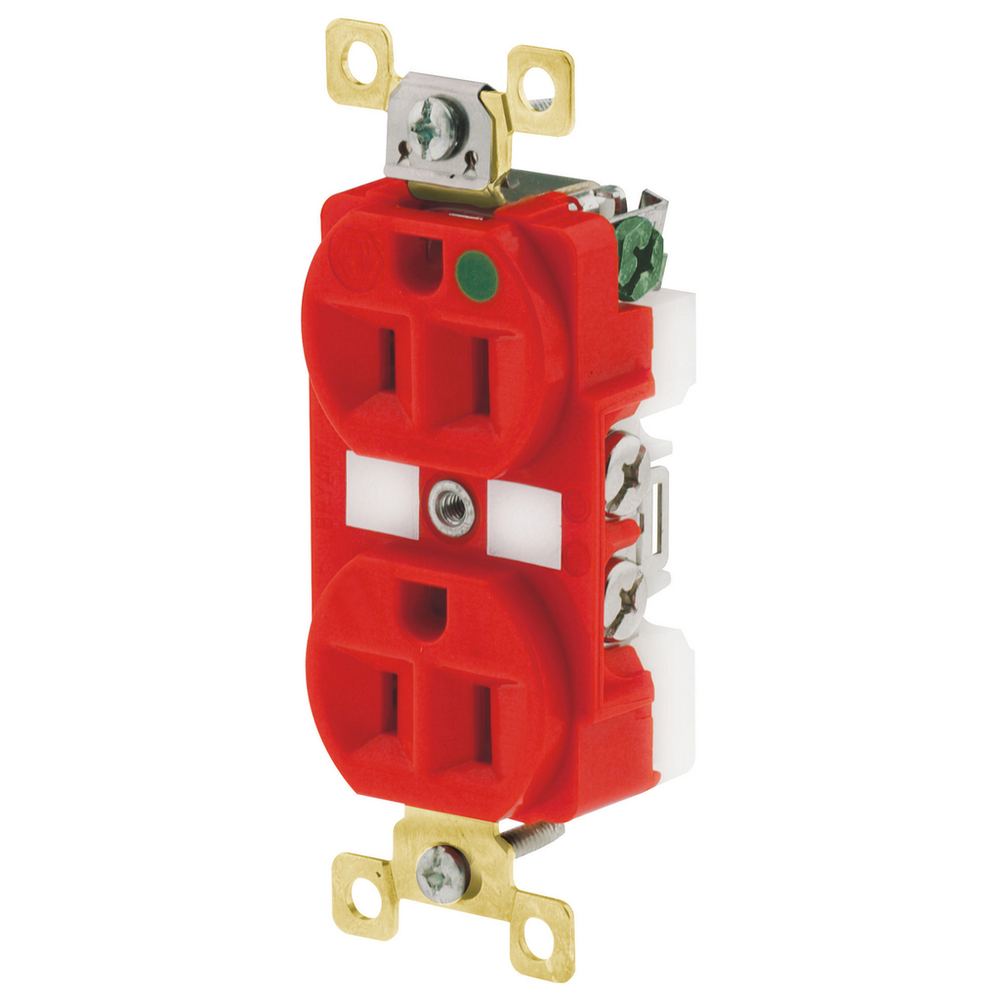

Bryant BRY8200RED Receptacle, Straight Blade, Heavy Use 15A 125V

Product Description

The BRYANT BRY8200RED is a straight blade, heavy-use receptacle. Designed for standard installations, it provides basic, non-locking power connections where electrical performance and durability are required. This duplex receptacle is ideal for industrial and hospital grade applications.

• Corrosion and heat resistant
• Flush mount type
• Grounded with screw terminals

Product Highlights

The BRYANT BRY8200RED receptacle is a durable and reliable choice for various applications. It features a robust design and is suitable for industrial and hospital environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8200RED
• Country of Origin: China

Technical Specifications

• Manufacturer: Bryant
• Manufacturer #: BRY8200RED
• Parts Town #: BYNTBRY8200RED
• Replaced by PT #: CRRBRY8200RED
• Units: Each
• Brand: BRYANT
• Manufacturer Part Number: BRY8200RED
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Copper
• Cover Type: No Cover
• Current Rating: 15 A
• Face Plate Height: 1.3 in
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Red
• Housing Material: Composite
• IP Rating: IP20
• Includes: Grounding Screw/Clip; Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Operating Temperature: 140 °F
• Maximum Wire Size: 12 AWG
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2-Pole
• Number of Wall Plates Included: 0
• Number of Wires: 3-Wire
• Overall Depth: 1.2 in
• Phase: Single Phase
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance Properties: Corrosion Resistant, Heat Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• UL 94 Flammability Rating: V-2
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Amps: 15 Amps
• Color: Red
• Count per pack: 1
• Volts: 125 VAC
• Has written warranty: No
• Item: Receptacle
• Amperage Rating: 15 A
• Application: Hospital Grade
• Base Unit of Measure: EA
• BOX SIZE: 2.700x8.700x5.200 (in)
• Carton - Gross Weight per Pack: 2.3 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 781786005570
• Carton - Total Units: 10 EA
• Case - Total Units: 100 EA
• Case Weight: 25.000 lb.
• Class Code: A04
• Connectivity: Back and Side Wired
• Country of Origin: CN
• Current / Amperage Rating: 15 A
• Description - Invoice: DUP RCPT, HG, 15A 125V, 5-15R, RD
• Dimensions: 3.28 in x 1.54 in x 1.16 in
• Display Size: Standard Sized Product
• Each - Pack Description: Each
• Each - Width: 1.800 in
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Freight Class Code: 06168002
• Harmonization Code: 8536698000
• Height: 1.16 in
• Image Actual Or Representative: A
• Length: 3.28 in
• Lowest Level UOM: Each
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• MSDS Flag: No
• Nema Rating: 5-15R
• NEMA Rating: 5-15R
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Replaced Catalog Number: 8200REDC
• Series: Hospital Grade
• Size: 3.28 in x 1.54 in x 1.16 in
• Special Features: Standard Product
• Style: Finder Groove Face
• Sub Class Code: A04A040
• Type: Duplex Receptacle
• Voltage Rating Description: 125 V
• Wattage: 1875
• Weight: 0.25 lb.
• Width: 1.800 in
