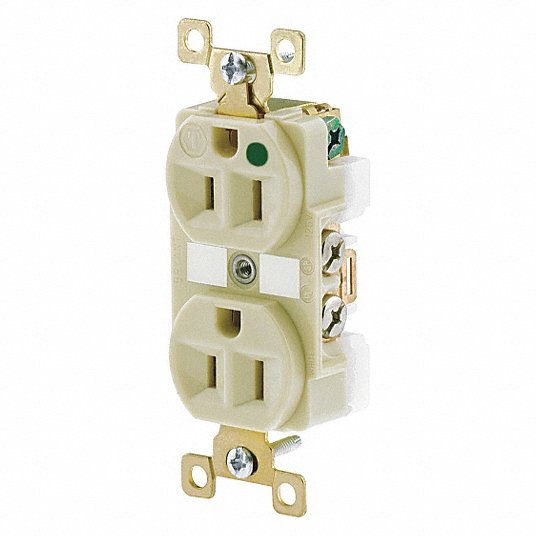

Bryant BRY8200IL Receptacle 15A 125V

Product Description

The Bryant BRY8200IL is a 15A 125V hospital-grade receptacle. This duplex receptacle features 2-pole, 3-wire grounding and a 5-15R NEMA rating. It is designed for indoor use and has a lighted face for easy visibility.

• Duplex receptacle
• Hospital Grade
• 2-Pole 3-Wire Grounding

Product Highlights

This Bryant receptacle is ideal for hospital settings, offering a reliable and safe electrical connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8200IL
• Country of Origin: China

Technical Specifications

• Application: Hospital Grade
• Catalog Number: BRY8200IL
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Hospital Grade
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786005617
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Connection Orientation: Straight
• Contact Material: Copper
• Country of Origin: China (subject to change)
• Cover: No
• Cover Type: No Cover
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Ivory
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 1.2 in
• Polarized: Yes
• Receptacle Type: Duplex
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
