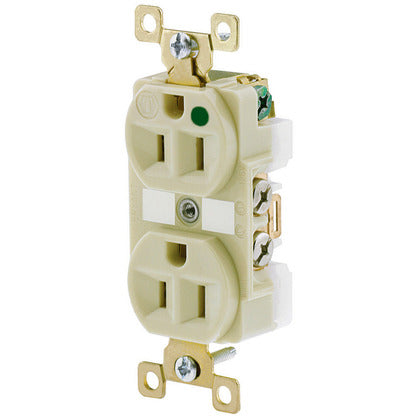

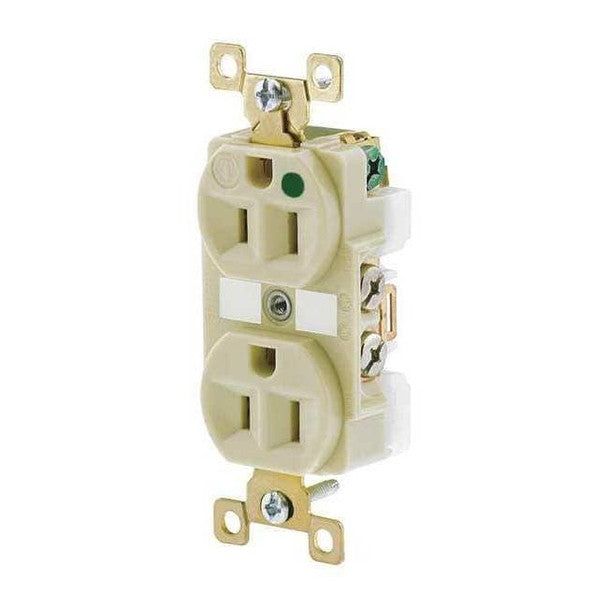

Bryant BRY8200I 15A 125V Hospital Grade Receptacle

Product Description

The Bryant BRY8200I is a 15A 125V hospital-grade receptacle. Designed for standard installations, it provides basic, non-locking power connections where electrical performance and durability are required. It features a grounded connection and is suitable for indoor locations.

• General purpose receptacles
• Corrosion and heat resistant
• One-piece ground system provides a more reliable continuity to ground than riveted designs

Product Highlights

This receptacle is ideal for industrial and hospital settings, ensuring reliable and safe electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8200I
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: BRY8200I
• Connection Orientation: Straight
• Contact Material: Copper
• Cover: No
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Ivory
• Housing Material: Composite
• Includes: Grounding Screw/Clip; Mounting Hardware
• Includes Mounting Hardware: Yes
• IP Rating: IP20
• Market: Industrial
• Maximum Operating Temperature: 140 00b0F
• Maximum Wire Size: 12 AWG
• Minimum Operating Temperature: -40 00b0F
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Overall Depth: 1.2 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance Properties: Corrosion Resistant, Heat Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• UL 94 Flammability Rating: V-2
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Current Rating: 15 A
• NEMA Configuration: 5-15R
• Voltage: 125 Volts
• Total Power Outlets: 2
• Specification Met: NEMA
• Included Components: Electrical Receptacle
• Unit Count: 1.0 Count
• Item Type Name: Electrical Receptacle, Electrical Outlet
• Style: Finder Groove Face
