Bryant BRY5669NC Industrial Heavy Duty Straight Connector 15A 250 VAC 6-15R

Product Description

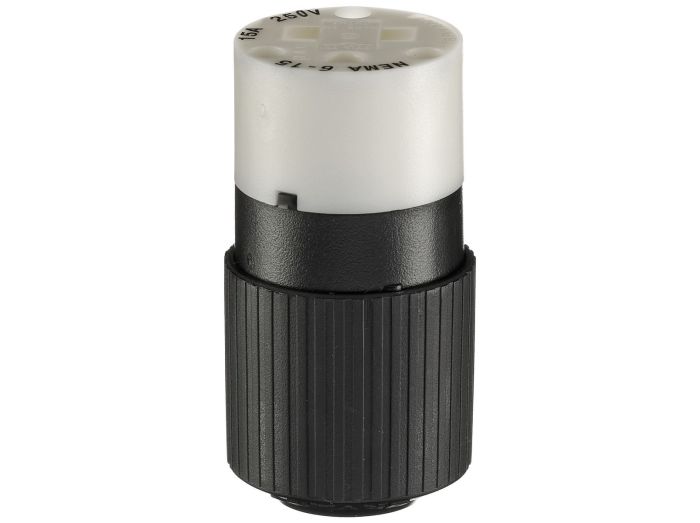

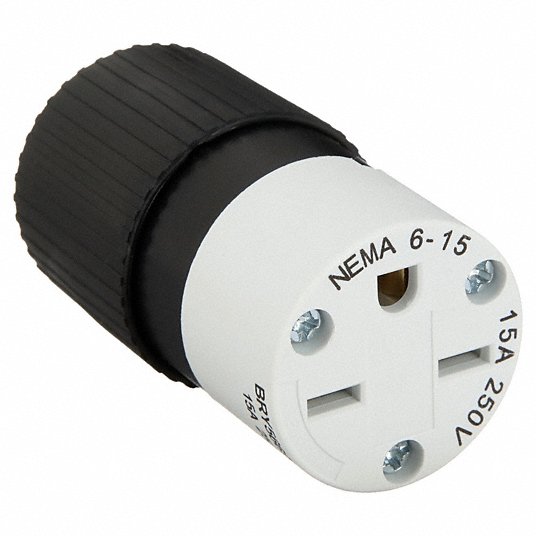

The BRYANT BRY5669NC is an industrial-grade heavy-duty straight connector, designed for inline connections with plugs to supply equipment with power. This female connector body is rated for 15A and 250V AC, featuring a 6-15R NEMA configuration. Constructed with terminations with screws that tighten down on conductors to secure them in place.

• Rated for 15A and 250V AC
• Features a 6-15R NEMA configuration
• Terminations with screws that tighten down on conductors

Product Highlights

Industrial grade, heavy-duty straight connector for reliable power connections in commercial and industrial environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5669NC
• Country of Origin: China

Technical Specifications

• Product Name: Bryant Connector Industrial Grade 15A 250V 6-15R Black And White (BRY5669NC)
• Brand: Bryant
• SKU: BRY5669NC
• Mfr. Part Number: BRY5669NC
• UPC Code: #781786005976
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 15A 250V, 2-Pole 3- Wire Grounding, 6-15R, White and Black, Single Pack
• Current Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: 6-15R
• Color: Black, White
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Cap Type: No Cap or Cover
• Compatible Series: Hubbell Straight Blade
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.66 in
• For Minimum Cable Diameter: 0.25 in
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Nylon
• IP Rating: Not Rated
• Market: Commercial; Industrial
• Maximum Operating Temperature: 75 00b0C
• Maximum Wire Size: 10 AWG
• Minimum Operating Temperature: -40 00b0F
• Minimum Wire Size: 14 AWG
• Overall Length: 2.95 in
• Phase: Single
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Voltage Rating: 250V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Material: Nylon
• Country of Origin: CN
• Style: Extra Heavy Duty
• Length: 3.000
• Width: 1.800
• Depth: 1.800
