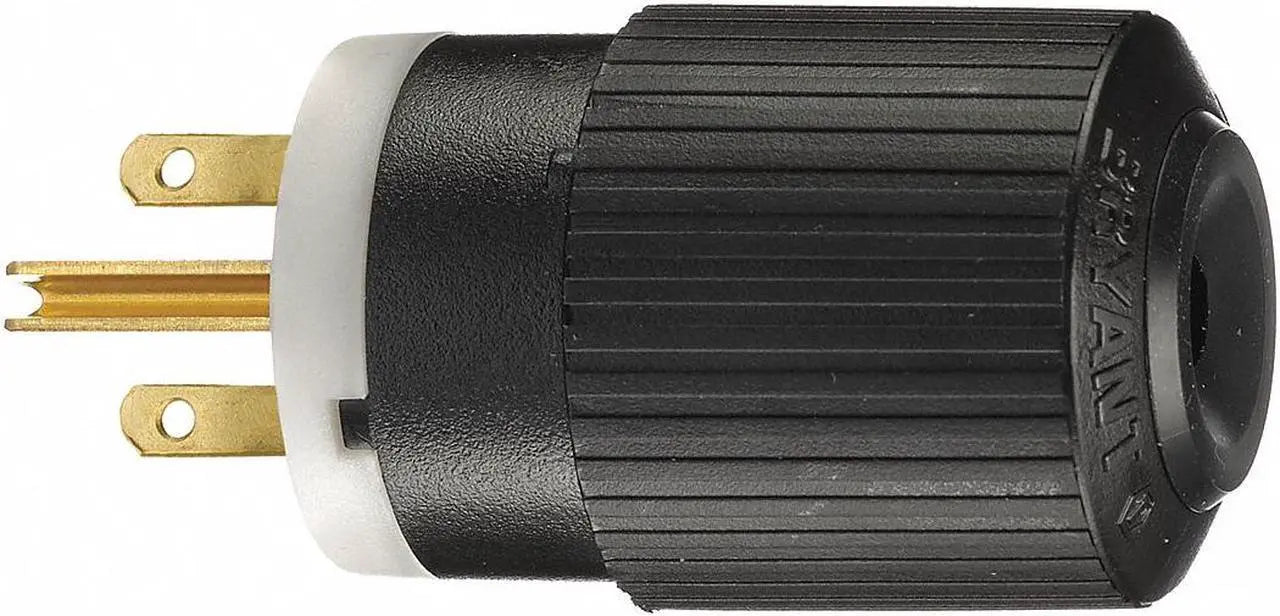

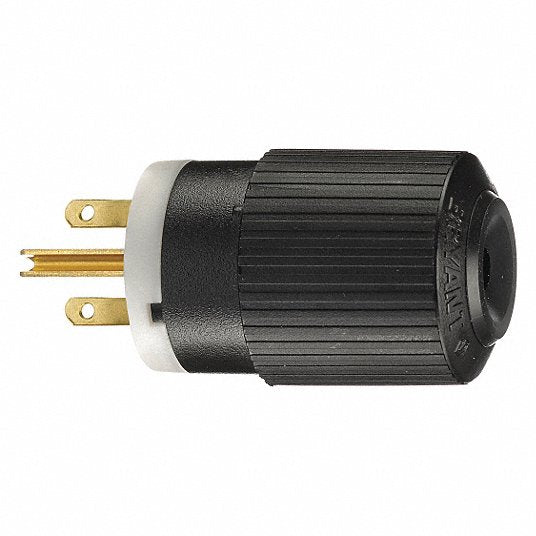

Bryant BRY5666NP Straight Blade Male Plug 15A 250V 6-15P

Product Description

The BRYANT BRY5666NP is a heavy-duty, industrial/commercial grade straight blade male plug. Rated at 15A and 250V, this 2-pole, 3-wire grounding plug features screw terminals for secure wire connections. Ideal for inline connections with receptacles and connectors to supply equipment with power in indoor, dry environments.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 15A 250V
• 2-Pole 3-Wire Grounding

Product Highlights

This Bryant straight blade plug is suitable for industrial and commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5666NP
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5666NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Material: Composite
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786005907
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 250 V AC
• Voltage Rating Description: 250 V
• Wattage: 3750
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 6-15P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Portable
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.625 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Material: Composite
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Number of Blades: 3
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
