HUBBELL Bryant BRY5469NC Industrial Heavy Duty Straight Connector 20A, 250 VAC
HUBBELL Bryant BRY5469NC Industrial Heavy Duty Straight Connector 20A, 250 VAC
HUBBELL Bryant BRY5469NC Industrial Heavy Duty Straight Connector 20A, 250 VAC
HUBBELL Bryant BRY5469NC Industrial Heavy Duty Straight Connector 20A, 250 VAC

Bryant BRY5469NC Industrial Heavy Duty Straight Connector 20A, 250 VAC

HUBBELL
Brand: HUBBELL
SKU: BRY5469NC
Availability: In Stock

Ships same day if ordered by 12 pm
$70.97
$70.97
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

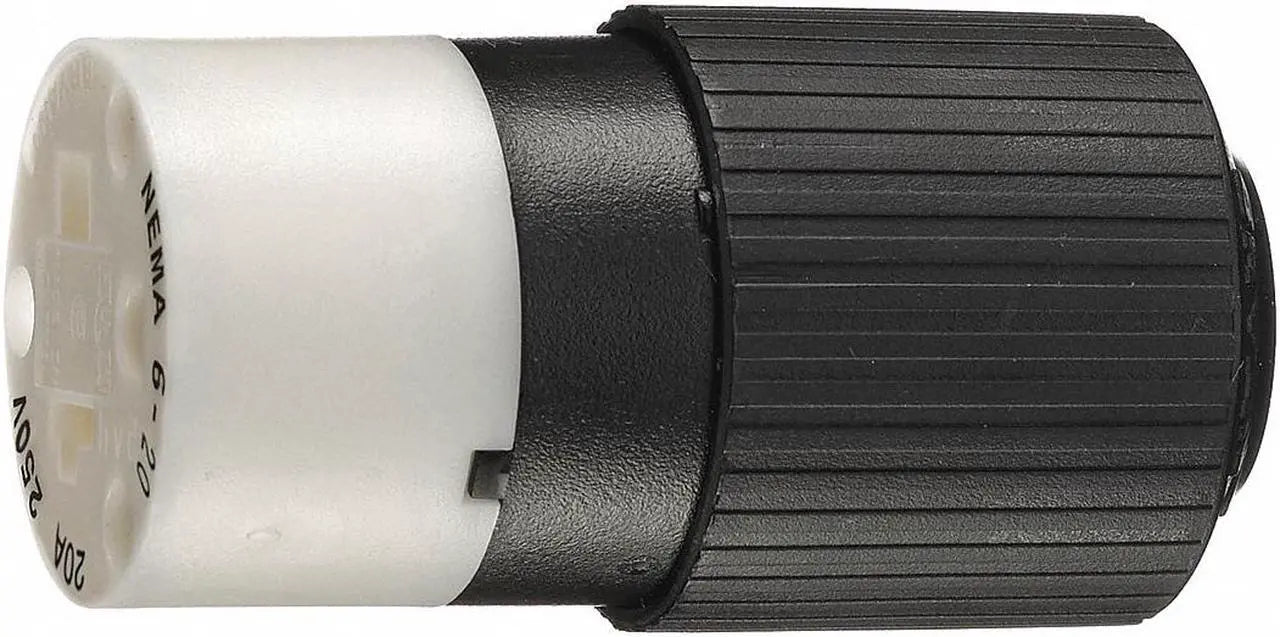

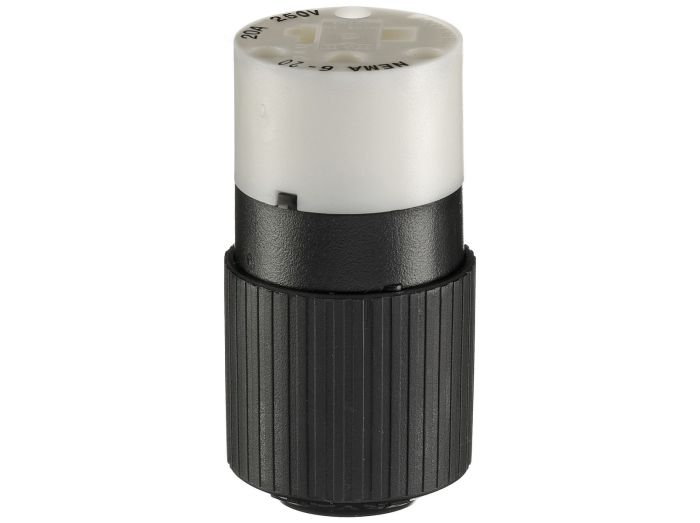

The BRYANT BRY5469NC is an industrial heavy-duty straight connector. Rated at 20A and 250 VAC, this connector is suitable for demanding industrial and commercial applications. It features a 2-pole, 3-wire grounding configuration and is designed for robust performance in harsh environments. The connector uses screw terminals for secure wire connections.

  • Heavy Duty
  • Industrial/Commercial Grade
  • Straight
  • 20A 250V

Product Highlights

Industrial grade straight connector with 20A and 250V rating, ideal for commercial and industrial applications.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: BRY5469NC
  • Country of Origin: United States
Technical Specifications
Application
Extra Heavy Duty Industrial Grade
Catalog Number
BRY5469NC
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Insulation
Insulated Body
Item Type
Tech-Spec Triple Gripper
Material
Composite
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Bryant
Series
Industrial
Style
Extra Heavy Duty
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type
Straight Blade Devices
UPC
781786005969
Dimensions
2.95 in x 1.52 in x 1.38 in
Height
1.38 in
Length
2.95 in
Weight
0.25 lb
Width
1.52 in
Amperage Rating
20 A
Connectivity
Screw Terminals
Current / Amperage Rating
20 A
Current Rating
20 A
Phase
Single Phase
Voltage Rating
250 V
Voltage Rating Description
250 V
Conductor Range
#14 AWG to #10 AWG
Number of Conductors
3-Wire Grounding
Number Of Poles
2-Pole
Number Of Wires
3-Wire
Nema Rating
6-20R
Standards - RoHS Compliance Status
CM
Carton Quantity
10
Pallet Quantity
5400
Manufacturer Part Number
BRY5469NC
Manufacturer
Bryant Electric
Family Series
Bryant Electric Plugs & Receptacles
Description
Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 20A 250V, 2-Pole 3- Wire Grounding, 6-20R, Black and White, Single Pack
Voltage
250 VAC
Body Type
Straight
Connection Type
Connector
NEMA Configuration
6-20R
Watertight
No
Isolated Ground
No
Illuminated
No
Approvals
CSA, UL
Net Weight
0.13 lbs
Gross Weight
0.25 lbs
Brand
BRYANT
Size/Dimensions
0.245" to 0.655"
First Listed on Newegg
September 29, 2016
Cap Type
No Cap or Cover
Compatible Series
Hubbell Straight Blade
For Environment
Dry
For Location
Indoor
For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.25 in
Grounding
Grounded
Horsepower Rating
1 hp
Housing Color
Black; White
Housing Material
Nylon
IP Rating
Not Rated
Market
Commercial; Industrial
Maximum Operating Temperature
75 °C
Maximum Wire Size
10 AWG
Minimum Operating Temperature
-40 °F
Minimum Wire Size
14 AWG
Overall Length
2.95 in
Resistance Properties
Chemical Resistant, Impact Resistant
Shrouded
Yes
Standards
NEMA WD-1; NEMA WD-5; UL 498
Wire Connection Type
Screw Terminals
Wiring Style
Standard
UNSPSC
39121421
