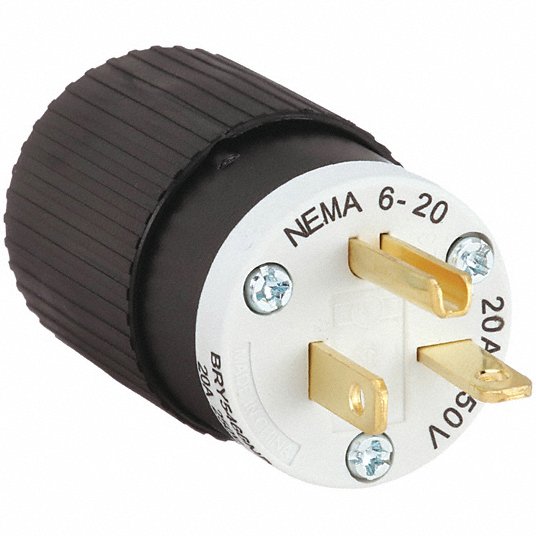

Bryant BRY5466NP Straight Blade Plug 250V 20A

Product Description

The Bryant BRY5466NP straight blade plug features terminations with screws that tighten down on conductors to secure them in place. It makes inline connections with receptacles and connectors to supply equipment with power. Suitable for industrial and commercial applications, it provides a secure and stable connection.

• 2P/3W configuration
• Capacity of 20A/250V
• Durable construction

Product Highlights

The Bryant straight blade plug is a reliable option for HVAC and refrigeration needs, designed to withstand heavy-duty use and provide a secure connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5466NP
• Country of Origin: China

Technical Specifications

• Manufacturer: Bryant
• Manufacturer #: BRY5466NP
• Current Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Body Length: 2.18 in
• Compatible Series: Triple Gripper
• Connection Orientation: Straight
• Face Diameter: 1.38 in
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.625 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Material: Composite
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• NEMA Plug Configuration: 6-20P
• Number of Blades: 3
• Outside Diameter: 1.52 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Number of Outlets: 1
• Output Voltage: 250 V
• Features: Cord, Locking Plug
