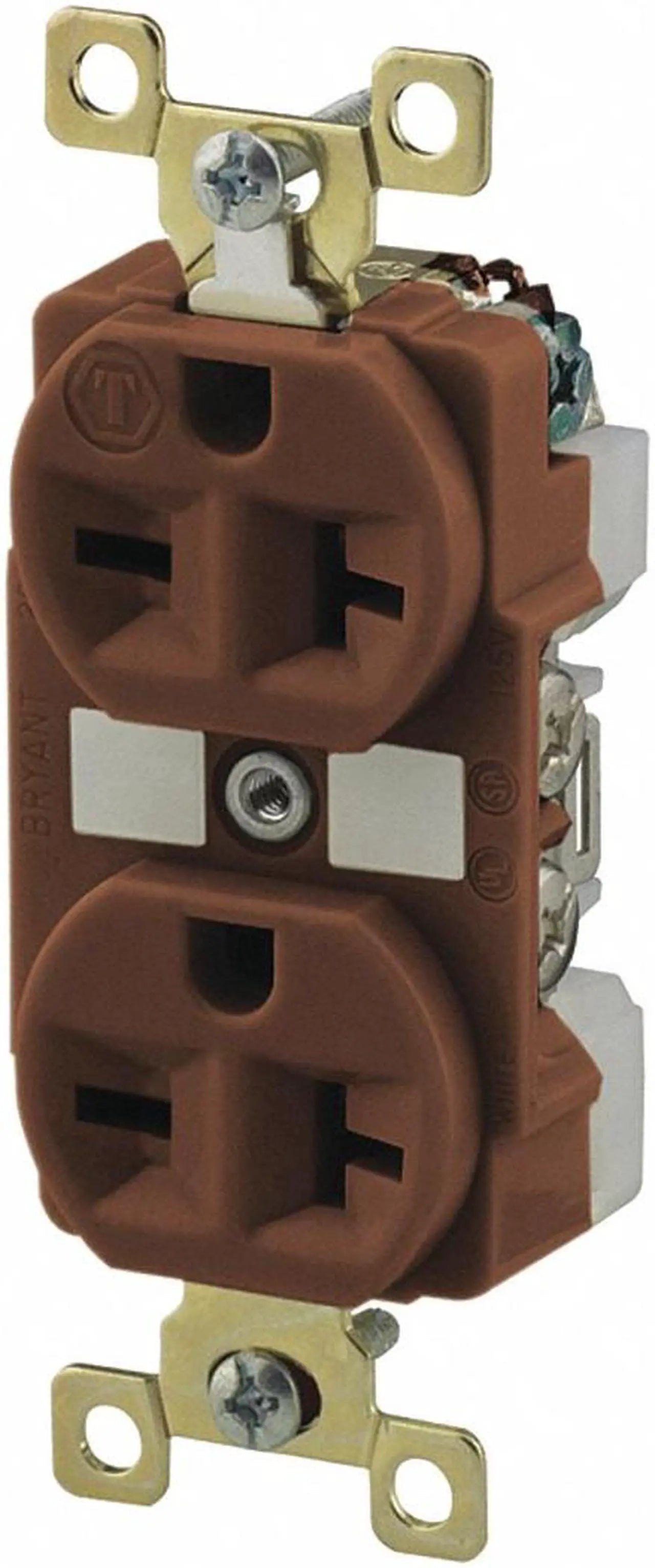

Bryant BRY5462 Duplex Receptacle 20A 250V 6-20R

Product Description

The BRYANT BRY5462 is a duplex receptacle designed for commercial and industrial use. Rated at 20A and 250V, this 2-pole, 3-wire grounding receptacle features a 6-20R NEMA configuration. It is suitable for heavy-duty applications requiring a reliable power connection.

• Duplex design
• Commercial/Industrial Grade
• 20A 250V

Product Highlights

Durable duplex receptacle for commercial and industrial applications. Provides a reliable 20A, 250V power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5462
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: BRY5462
• Color: Brown
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Straight Blade Receptacles
• UPC: 781786005358
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 250 V AC
• Wattage: 5000
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 6-20R
• Model: BRY5462
• Brand: Bryant Electric
• Material: Nylon, Steel
• Voltage: 250
• Amperage: 20
• Connector Type: Plug-In
• Total Power Outlets: 2
• Specification Met: NEMA
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover: No
• Cover Type: No
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Brown
• Housing Material: Nylon
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 6-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; Federal Specification W-C-59; NEMA WD-1 and WD-6; UL 498; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
