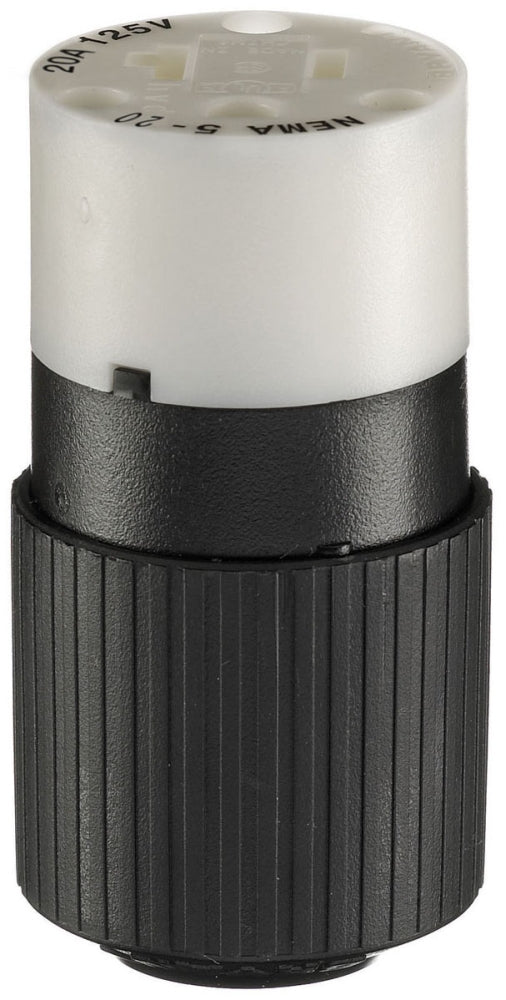

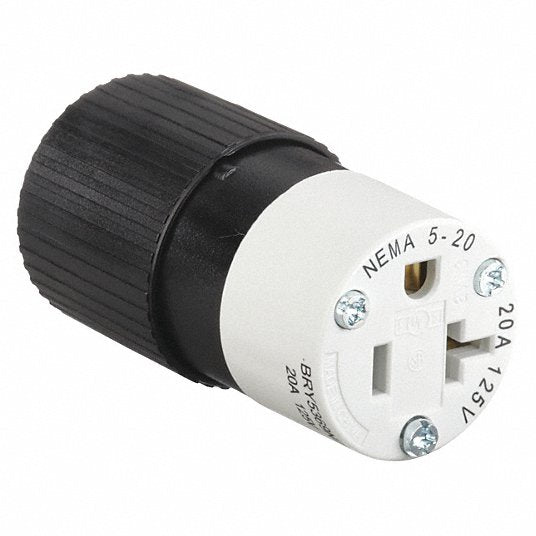

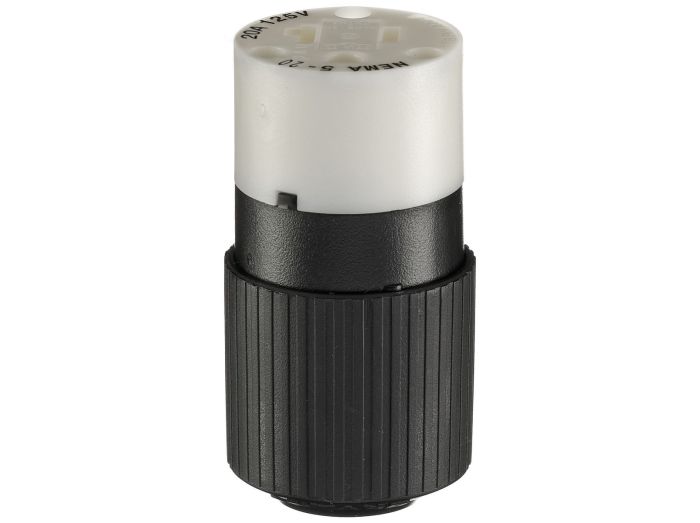

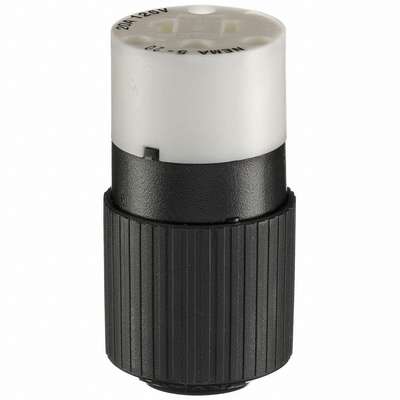

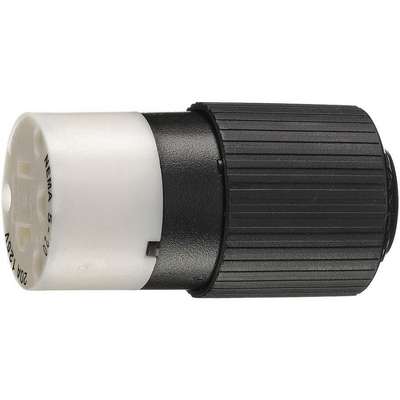

Bryant BRY5369NC Straight Blade Connector 20A 125V

Product Description

The BRYANT BRY5369NC straight blade connector is a heavy-duty, industrial-grade connector. Constructed with impact and chemical-resistant nylon housing, it features an internal Triple Gripper cord clamp that automatically centers and secures the cord. This connector is ideal for inline connections to supply equipment with power.

• Hand Grip Features Wide-Rib, Non-Slip Design
• Double Wall Construction Provides Extra Protection for Internal Components
• Face and Body Feature Alignment Keys for Easy Assembly

Product Highlights

Heavy-duty, industrial-grade straight blade connector with nylon housing and internal cord clamp for secure connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5369NC
• Country of Origin: United States

Technical Specifications

• Approval: UL, CSA C22.2, Fed Spec WC596
• Configuration: 5-20R
• Constructional Feature: Impact/Chemical Resistant
• Cord Size: 0.3 to 0.655 Inch
• Grade: Heavy Duty, Industrial, Commercial
• Ground Type: Grounding
• Manufacturer Name: Bryant
• Material: Nylon
• Number Of Poles: 2
• Number Of Wires: 3
• Product UPC: 781786005952
• Type: Straight Blade Connectors
• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5369NC
• Cord Range: 0.300"-0.655"
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Tech-Spec Triple Gripper
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 C with impact.
• UPC: 781786005952
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Rating: 20 A
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Conductor Range: #14 AWG to #10 AWG
• Number of Conductors: 3-Wire Grounding
• Nema Rating: 5-20P
• Manufacturer Part Number: BRY5369NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Black, Single Pack
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: 5-20R
• Color: Black, White
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Model: BRY5369NC
• Brand: Bryant
• MPN: BRY5369NC
• Condition: New
• Country of Origin: United States
• Amperage: 20 A
• Antimicrobial: No
• Color Family: Black / White
• Corrosion Resistant: No
• IP Rating: Not Rated
• Item: Straight Blade Connector
• Mfr. Part Number: BRY5369NC
• NEMA Configuration - Plugs & Connectors: 5-20
• NEMA Plug Configuration: 5-20R
• Package Quantity: 1
• Phase: Single
• Power Indicator: No
• Wiring Style: Standard
• Amps: 20 A
• For Environment: Dry
• Grounding: Grounded
• Housing Material: Nylon
• Maximum Operating Temperature: 75 C
• Maximum Wire Size: 10 AWG
• Minimum Operating Temperature: -40 F
• Minimum Wire Size: 14 AWG
• Overall Length: 2.95 in.
• Shrouded: Yes
• Special Features: Dust Resistant
• Standards: NEMA WD-1 and WD-5, UL 498
• Wire Connection Type: Screw Terminals
• Cap Type: No Cap or Cover
• Compatible Series: Hubbell Straight Blade
• For Location: Indoor
• For Maximum Cable Diameter: 0.66 in
• For Minimum Cable Diameter: 0.25 in
• Horsepower Rating: 1 hp
• Housing Color: Black; White
• Market: Commercial; Industrial
• NEMA Receptacle Configuration: 5-20R
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• UNSPSC: 39121421
