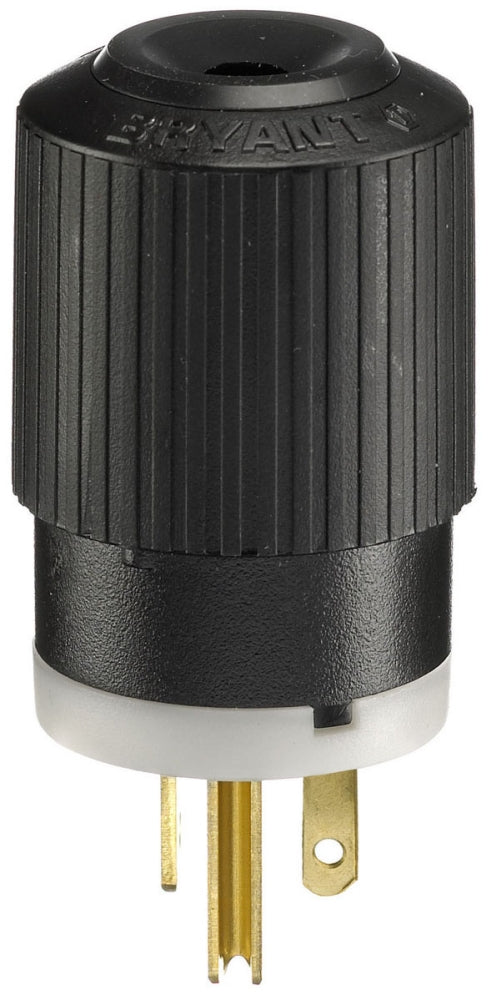

Bryant BRY5366NP Straight Blade Plug 20A 125V 5-20P

Product Description

The BRYANT BRY5366NP is a 20A 125V male plug with NEMA 5-20P configuration. Constructed from impact and chemical-resistant composite nylon, this industrial-grade plug features a grounding design. It accepts cord sizes from 0.3 to 0.655 inches and has amperage, voltage, and NEMA configuration imprinted on the face for easy identification.

• Hand Grip Features Wide-Rib, Non-Slip Design
• Double Wall Construction Provides Extra Protection for Internal Components
• Universal Cord Grip Design Accepts 0.3 to 0.655 Inch Cord without Inserts or Adapters

Product Highlights

Heavy-duty, industrial/commercial grade straight blade plug for inline connections to supply power to equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5366NP
• Country of Origin: China

Technical Specifications

• Approval: UL, CSA
• Configuration: NEMA 5-20P
• Constructional Feature: Impact Resistant, Chemical Resistant
• Cord Size: 0.3 to 0.655 Inch
• Grade: Industrial
• Ground Type: Grounding
• Manufacturer Name: Bryant
• Material: Composite Nylon
• Number Of Poles: 2
• Number Of Wires: 3
• Product UPC: 781786005884
• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5366NP
• Cord Range: 0.300"-0.655"
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Tech-Spec Triple Gripper
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786005884
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Portable
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Brand: BRYANT
• Body Length: 2.18 in
• Compatible Series: Triple Gripper
• Connection Orientation: Straight
• Face Diameter: 1.38 in
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Material: Composite
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• NEMA Plug Configuration: 5-20P
• Number of Blades: 3
• Outside Diameter: 1.52 in
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• MPN: BRY5366NP
• Country of Origin: United States
• NEMA Configuration: 5-20P
