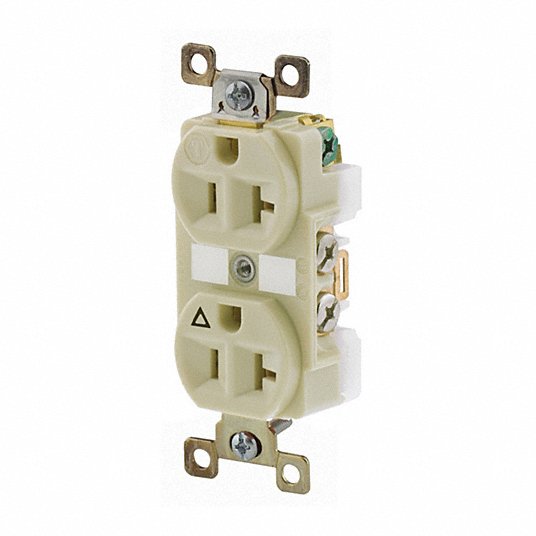

Bryant BRY5362IGI Receptacle 20A 125V

Product Description

The Bryant BRY5362IGI is a 20A 125V receptacle. General purpose receptacles provide basic, non-locking power connections without added protection or monitoring features. They are designed for standard installations where electrical performance and durability are required without specialized grounding, signaling, or surge suppression.

• Duplex receptacle
• Current rating of 20A
• Voltage rating of 125V AC

Product Highlights

This receptacle is suitable for commercial and industrial markets, offering a corrosion-resistant design and compliance with CSA and UL standards.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5362IGI
• Country of Origin: China

Technical Specifications

• AFCI: No
• Brand: BRYANT
• Connection Orientation: Straight
• Contact Material: Brass
• Cover: No
• Cover Type: No Cover
• Country of Origin: China (subject to change)
• Current Rating: 20 A
• Face Plate Width: 1.5 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded; Isolated Ground
• Horsepower Rating: 1 hp
• Housing Color: Ivory
• Housing Material: Composite
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Poles: 2
• Number of Wires: 3
• Overall Depth: 1.2 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Duplex
• Resistance Properties: Corrosion Resistant
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; Federal Specification W-C-59; NEMA WD-1 and WD-6; UL 498; UL Listed
• Surge Protection: No
• Terminals: Screw
• Voltage Rating: 125V AC
• Wiring Method: Back/Side
• Model/Part#: BRY5362IGI
