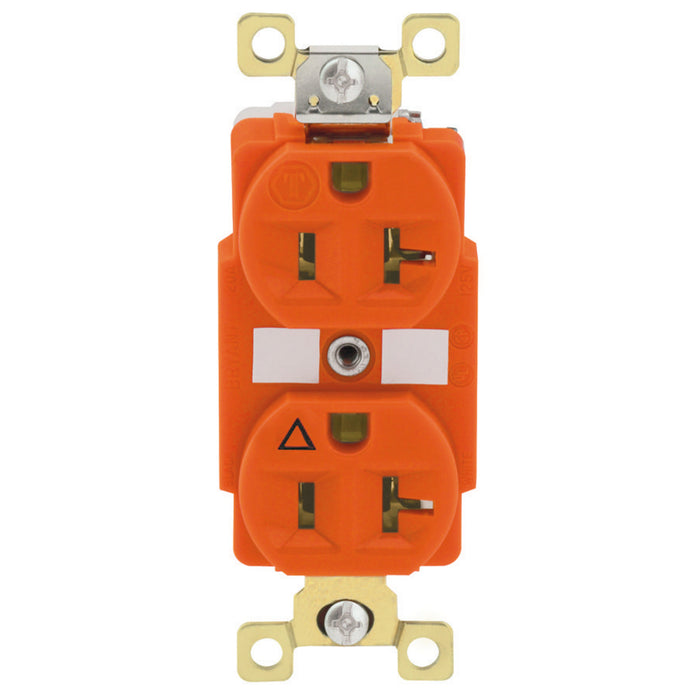

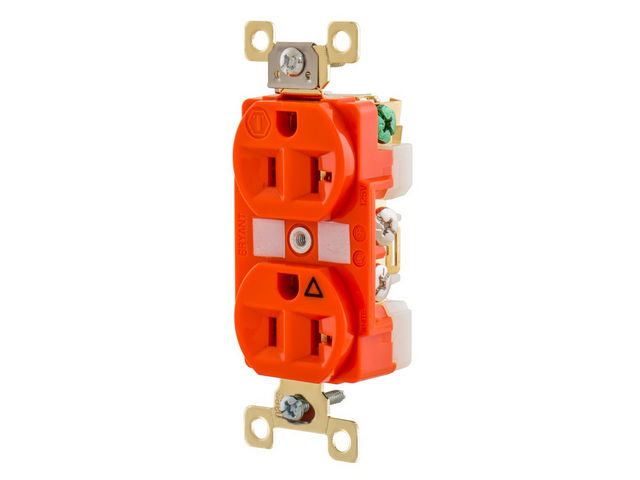

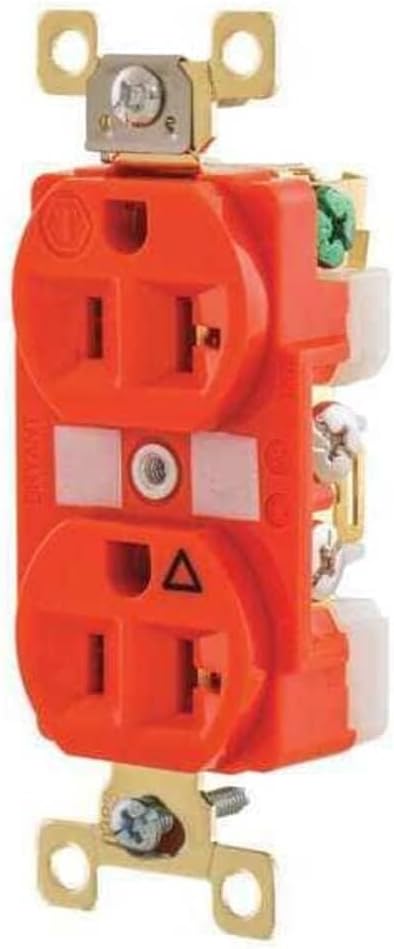

Bryant BRY5362IG Duplex Receptacle 20A 125V 5-20R

Product Description

The Bryant BRY5362IG is a tech-spec isolated ground receptacle that isolates ground contacts from the mounting strap using an insulation barrier. The green grounding screw connects directly to the grounding contacts, separating them from the mounting strap and conventional grounding system. It helps limit electrical noise by providing two grounding paths.

• One-piece grounding system including integral self-grounding strap
• Full-face, wraparound design is molded of high-impact, chemical-resistant nylon
• Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors

Product Highlights

The Bryant BRY5362IG receptacle is designed for standard installations where electrical performance and durability are required without specialized grounding, signaling, or surge suppression.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5362IG
• Country of Origin: China

Technical Specifications

• Brand: Bryant Electric
• Manufacturer Part Number: BRY5362IG
• Voltage: 125 Volts
• Amperage: 20 Amps
• Connector Type: Plug-In
• Total Power Outlets: 2
• Specification Met: NEMA
• Model: BRY5362IG
• UPC: 781786005280
• Manufacturer: Bryant Electric
• Part Number: BRY5362IG
• Included Components: Receptacle
• Unit Count: 1.0 Count
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Current Rating: 20 A
• Face Plate Width: 1.5 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded; Isolated Ground
• Horsepower Rating: 1 hp
• Housing Color: Orange
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Overall Depth: 1.2 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Chemical Resistant Heat Resistant Impact Resistant
• Standards: CSA Certified; Federal Specification W-C-59; NEMA WD-1 and WD-6; UL 498; UL Listed
• Surge Protection: No
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
