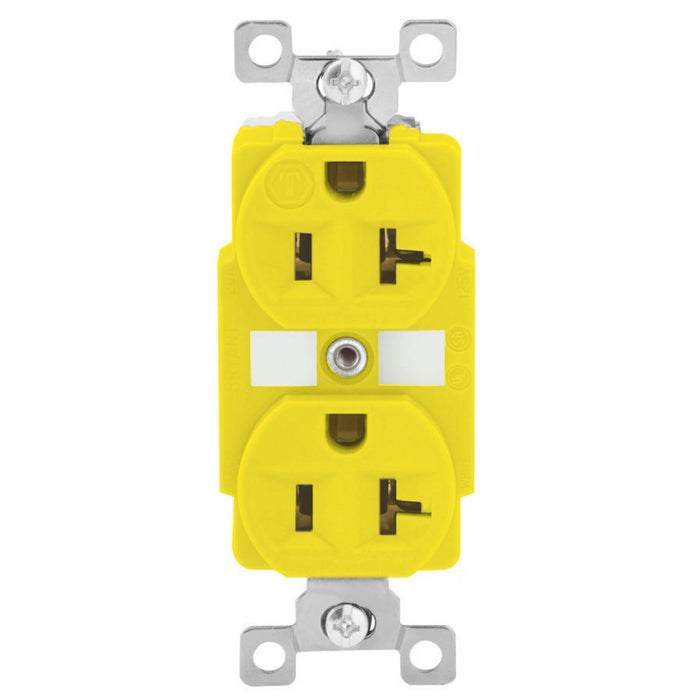

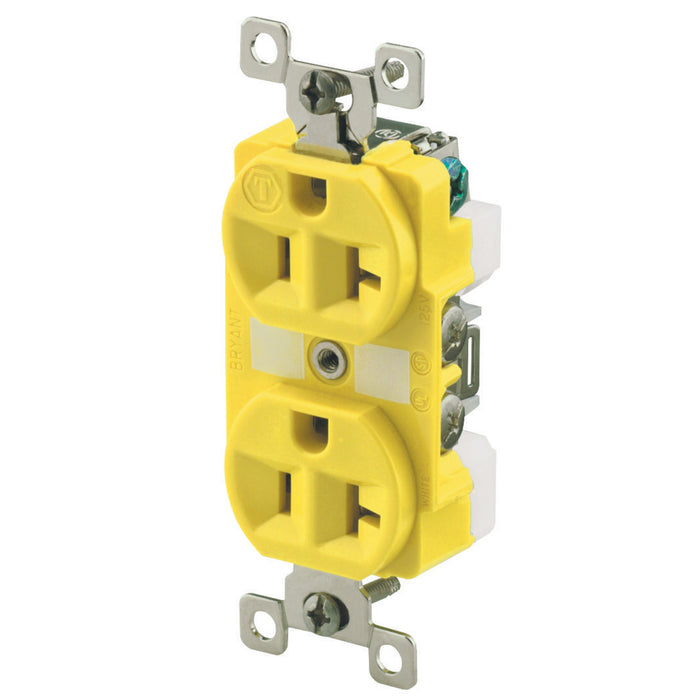

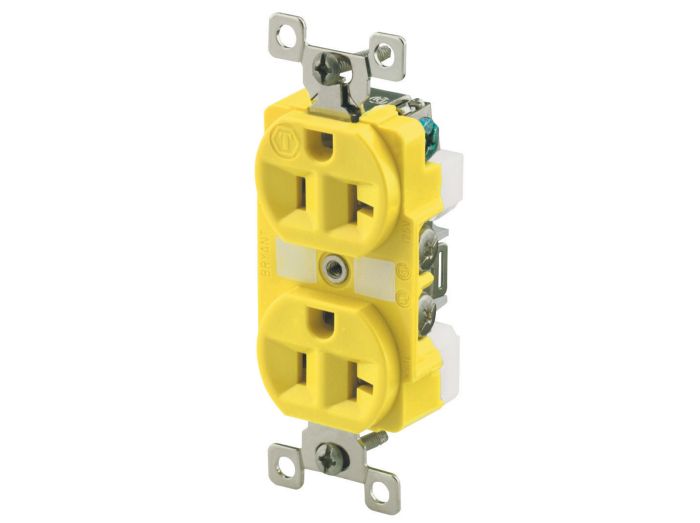

Bryant BRY5362CR Duplex Receptacle 20A 125V 5-20R

Product Description

The BRYANT BRY5362CR is a duplex receptacle designed for commercial and industrial use. This corrosion-resistant receptacle supports 2-pole, 3-wire grounding and is rated for 15A at 125V. It is suitable for heavy-duty applications and indoor dry environments when properly protected.

• Commercial/Industrial Grade
• Corrosion Resistant
• 15A 125V

Product Highlights

This receptacle is ideal for industrial settings requiring a durable and corrosion-resistant wiring solution.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5362CR

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: BRY5362CR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786005273
• Dimensions: 3.28 in x 1.54 in x 1.16 in
• Display Size: Standard Sized Product
• Height: 1.16 in
• Length: 3.28 in
• Width: 1.54 in
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM
• Brand: Bryant
• SKU: BRY5362CR
• Mfr. Part Number: BRY5362CR
• Housing Color: Yellow
• UPC Code: #781786005273
• Manufacturer Part Number: BRY5362CR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, Corrosion Resistant, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Yellow, Single Pack
• Voltage: 125 VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-20R
• Color: Yellow
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Special Properties: Corrosion Resistant
• Approvals: CSA, UL
• Comments: Specification Grade
• Amperage: 20A
• Voltage AC: 125V AC
• Number of Poles: 2P
• Number of Wires: 3
• Ground: Grounding
• Application Grade: Industrial
• Wiring Method: Back & Side
