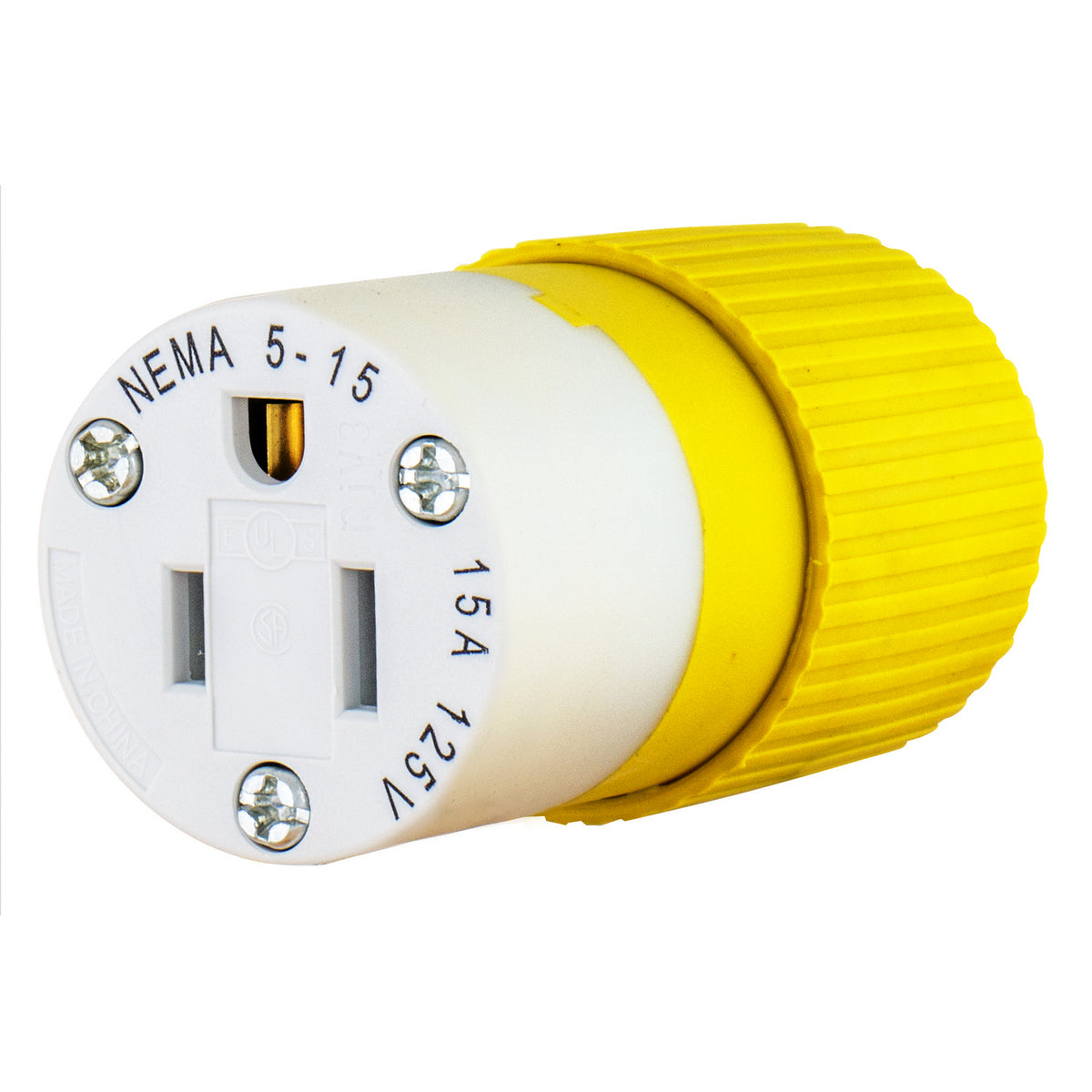

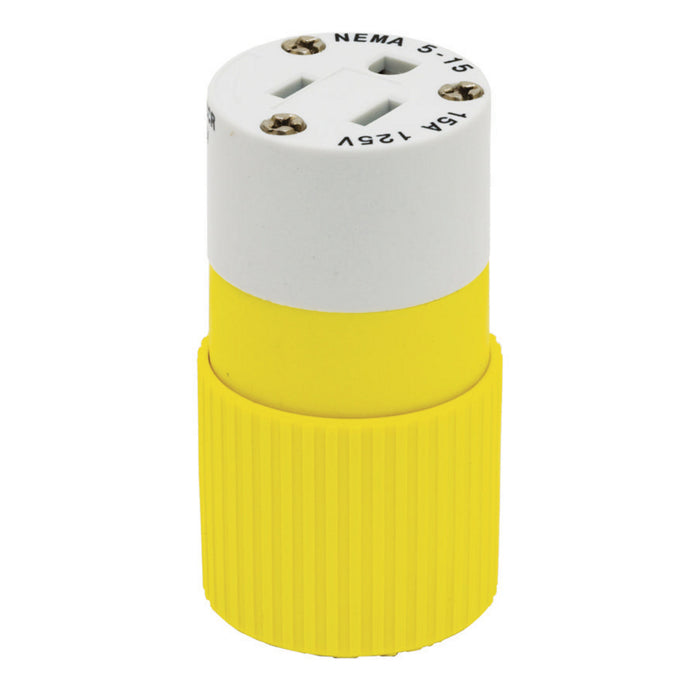

Bryant BRY5269NCCR Straight Blade Devices Female Connector Body 15A 125V 5-15R

Product Description

The BRYANT BRY5269NCCR is a straight blade female connector body designed for industrial and commercial use. This corrosion-resistant connector features a straight configuration and supports 15A at 125V. It is a 2-pole, 3-wire grounding connector with a NEMA rating of 5-15R, suitable for extra heavy-duty applications.

• Corrosion Resistant
• Industrial/Commercial Grade
• Straight
• 15A 125V
• 2- Pole 3-Wire Grounding

Product Highlights

Corrosion-resistant, industrial-grade connector body with 15A 125V rating and 2-pole, 3-wire grounding.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5269NCCR
• Country of Origin: CN

Technical Specifications

• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5269NCCR
• Color: Yellow
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Tech-Spec Triple Gripper
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786134096
• Dimensions: 2.95 in x 1.52 in x 1.38 in
• Display Size: Standard Sized Product
• Height: 1.38 in
• Length: 2.95 in
• Weight: 0.1 lb
• Width: 1.52 in
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Rating: 15 A
• Voltage Rating: 125 V
• Conductor Range: #14 AWG to #10 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Carton Quantity: 10
• Pallet Quantity: 5400
• ARRA Compliant: Y
• Buy American Compliant: Y
• Cord Diameter: 0.245 to 0.655 in
• Country of Origin: CN
• Grade: Industrial
• Terminal Type: Screw
• UNSPSC: 39121421
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD5UL 498CSA CertifiedFederal Specification
• Resistance Properties: Chemical Resistant, Corrosion Resistant, Impact Resistant
• Special Features: Insulated Body
• For Environment: Indoor Dry Unless Protected By Additional Means
