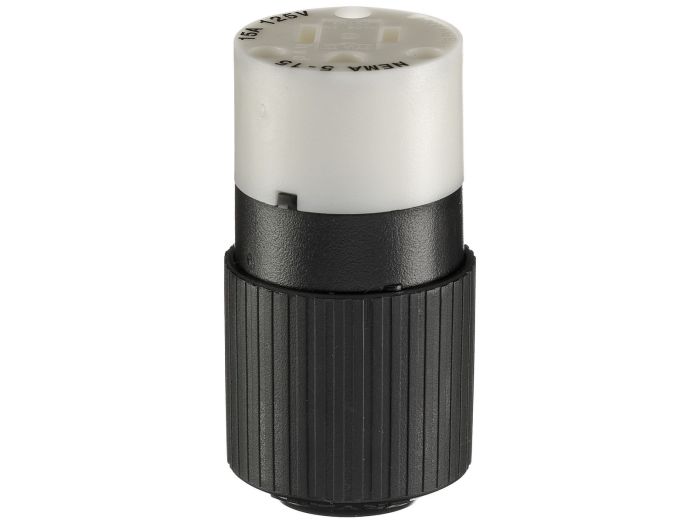

Bryant BRY5269NC female connector body 15A 125V 5-15R

Product Description

The BRYANT BRY5269NC is a heavy-duty, industrial/commercial grade female connector body. Rated at 15A and 125V, this straight blade connector features a 2-pole, 3-wire grounding configuration and a NEMA 5-15R rating. It is suitable for indoor dry environments unless protected by additional means.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 15A 125V
• 2-Pole 3- WireGrounding

Product Highlights

This Bryant connector is ideal for industrial and commercial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5269NC

Technical Specifications

• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5269NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Tech-Spec Triple Gripper
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786005945
• Dimensions: 2.95 in x 1.52 in x 1.38 in
• Height: 1.38 in
• Length: 2.95 in
• Weight: 0.15 lb
• Width: 1.52 in
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Rating: 15 A
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Conductor Range: #14 AWG to #10 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Brand: Bryant
• MPN: BRY5269NC
• Volts AC: 120
• Manufacturer Part Number: BRY5269NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 15A 125V, 2-Pole 3- WireGrounding, 5-15R, White and Black, Single Pack
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Net Weight: 0.13 lbs
• Gross Weight: 0.15 lbs
