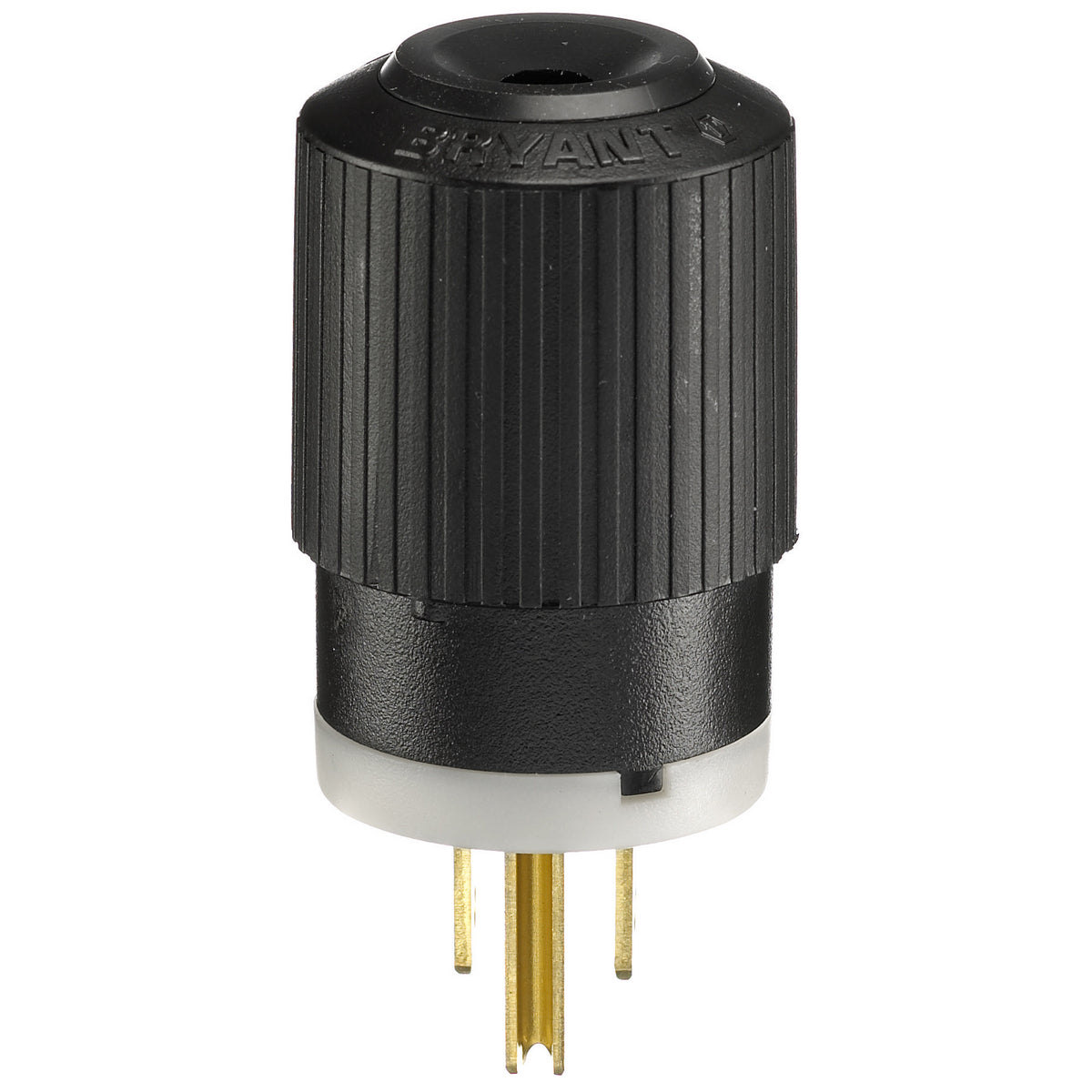

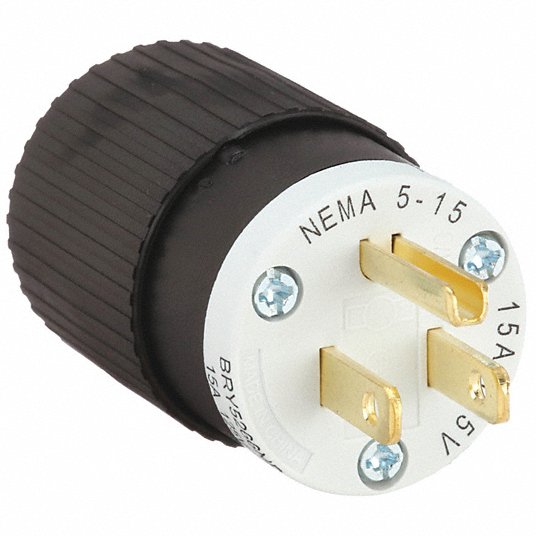

Bryant BRY5266NP Techspec Straight Blade Plug 15A 125V (Pack of 5)

Product Description

The Bryant BRY5266NP TECHSPEC Straight Blade Plug is a heavy-duty, industrial/commercial grade plug. Rated at 15A and 125V, it features screw terminals for secure wire connections. The plug is suitable for indoor dry environments and is constructed from composite material for durability. It makes inline connections with receptacles and connectors to supply equipment with power.

• Heavy Duty and Industrial/Commercial Grade
• 2-Pole 3-Wire Grounding
• Screw Terminals

Product Highlights

This straight blade plug is ideal for industrial and commercial applications requiring a reliable and durable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5266NPCR
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Color: Black/White
• Voltage: 125 V
• Material: Composite
• Connector Type: Plug in
• Number of Poles: 2
• Number Of Wires: 3
• Plug Type: Type B
• Amperage: 15 A
• Specification Met: UL
• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5266NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Tech-Spec Triple Gripper
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786005877
• Dimensions: 2.18 in x 1.52 in x 1.38 in
• Display Size: Standard Sized
• Height: 1.38 in
• Length: 2.18 in
• Weight: 0.2 lb
• Width: 1.52 in
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating Description: 125 V
• Wattage: 1875
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Portable
• Body Length: 2.18 in
• Compatible Series: Triple Gripper
• Connection Orientation: Straight
• Face Diameter: 1.38 in
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Black; White
• Housing Material: Composite
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• NEMA Plug Configuration: 5-15P
• Number of Blades: 3
• Outside Diameter: 1.52 in
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• ARRA Compliant: Y
• Buy American Compliant: Y
• Cord Diameter: 0.3 to 0.655 in
• Country of Origin: CN
• Frequency Rating: 50/60 Hz
• Grade: Industrial
• Temperature Rating: -40 to 60 °C
• Terminal Type: Screw
