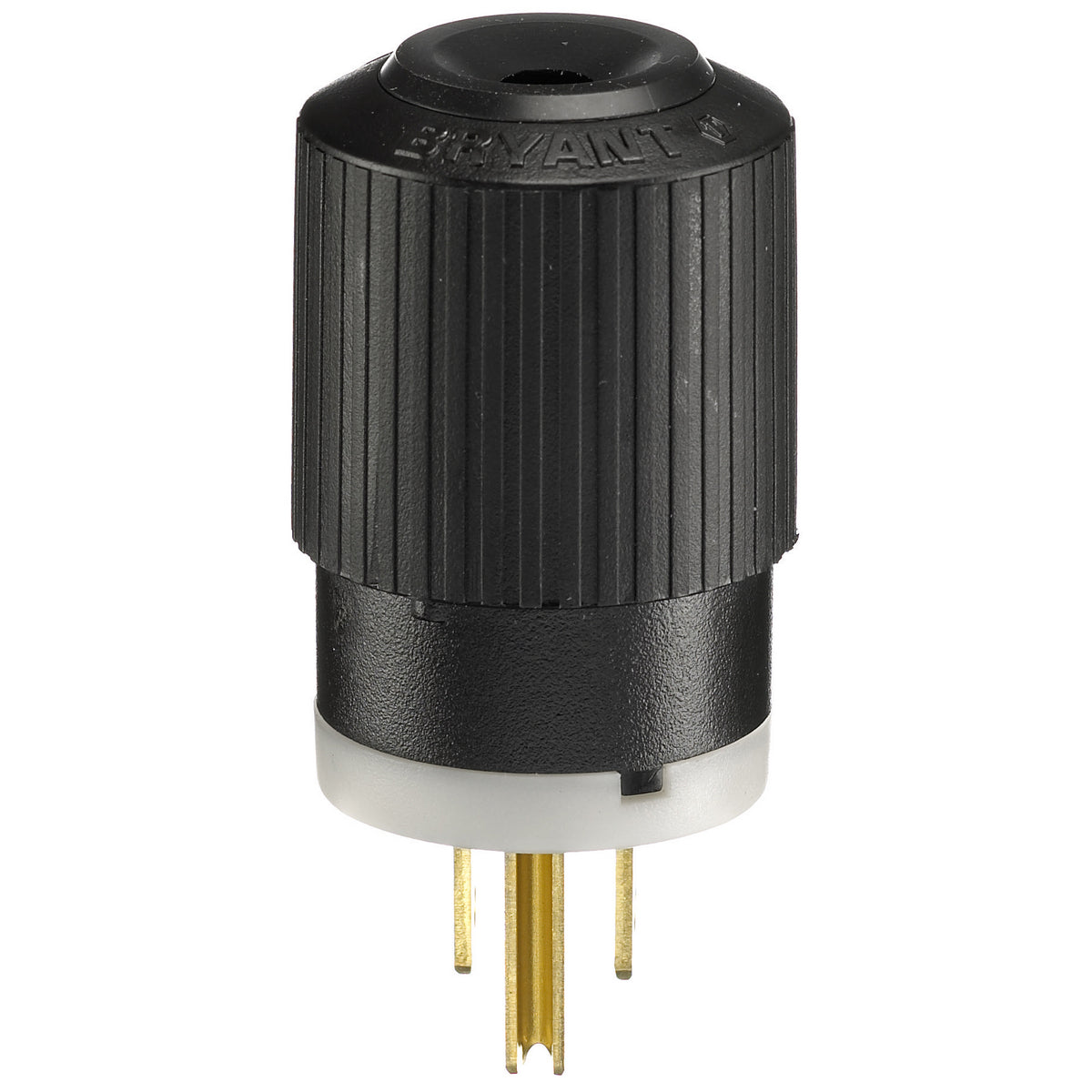

Bryant BRY5266NP Straight Blade Plug 15A 125V 5-15P

Product Description

The BRYANT BRY5266NP is a heavy-duty, industrial/commercial grade straight blade plug. This 15A 125V plug features screw terminals for secure conductor connections. Ideal for inline connections with receptacles and connectors, it supplies power to equipment in dry, indoor environments.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 15A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

This straight blade plug is designed for industrial and commercial applications, ensuring a reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5266NP
• Country of Origin: China

Technical Specifications

• Catalog Number: BRY5266NP
• Application: Extra Heavy Duty Industrial Grade
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786005877
• Dimensions: 2.18 in x 1.52 in x 1.38 in
• Height: 1.38 in
• Length: 2.18 in
• Weight: 0.2 lb
• Width: 1.52 in
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Portable
• Body Length: 2.18 in
• Compatible Series: Triple Gripper
• Connection Orientation: Straight
• Face Diameter: 1.38 in
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Composite
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Frequency Rating: 50/60 Hz
• Grade: Industrial
• Temperature Rating: -40 to 60 °C
• Terminal Type: Screw
• Electrical plug type: Type A
• Amps: 15 Amps
• Volts: 125 V
• Poles And Wires: 2 Pole, 3 Wire
• Amperage: 15
• Maximum Working Voltage: 250V AC or DC
• Cord Grip Range: 245"-655" (62-166)
• Flammibility: HB or Better per UL94
• Operating Temperature: Maximum Continuous 60 deg C, Minimum -40 deg C (w/o impact)
• Environmental Conditions: Indoor Dry unless protected by additional means
• ARRA Compliant: Y
• Buy American Compliant: Y
• Cord Diameter: 0.3 to 0.655 in
• Height [Metric]: 1.7780 cm
• Length [Metric]: 9.1440 cm
• Terminal Identification: Brass-Hot; Green-Grounding; Silver-Neutral
• Terminal Accommodation: #18-#10 AWG Flexible Cord
• Ul Listing: UL Listed File #E1381- Guide #AXUT
• CSA Certification: CSA Certified File #LR16215- Guide 20T2
• Federal Specifications: Federal Specification WC596 (where applicable)
• Complies With: NEMA Standards WD-1, WD-6
