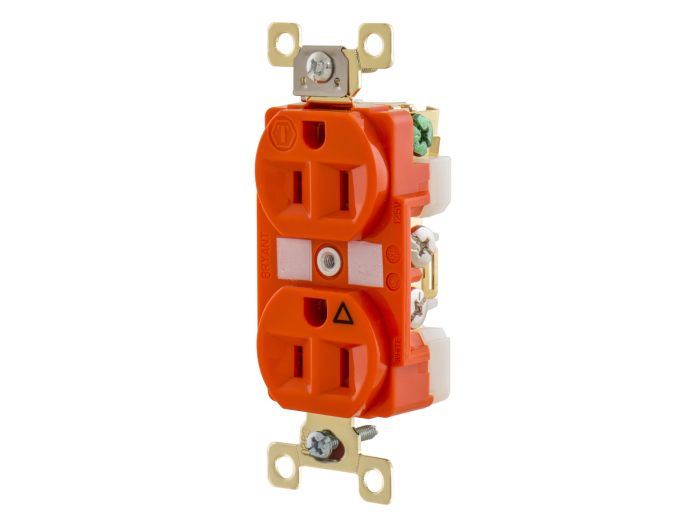

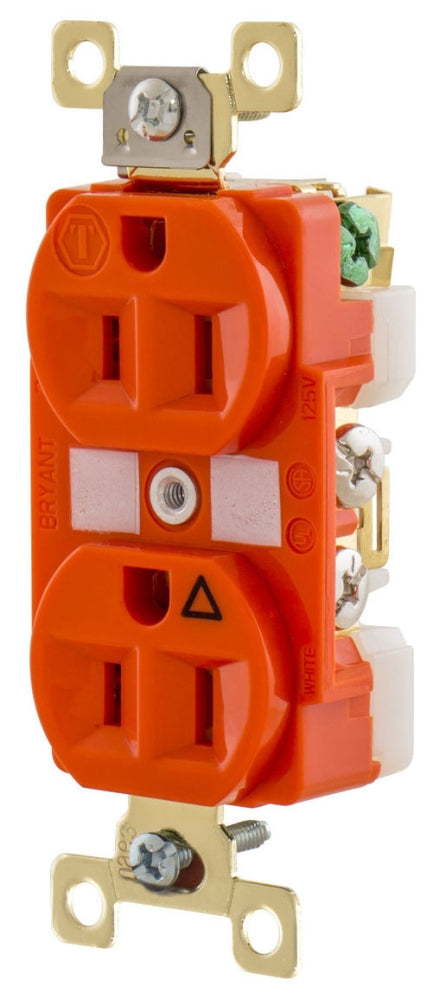

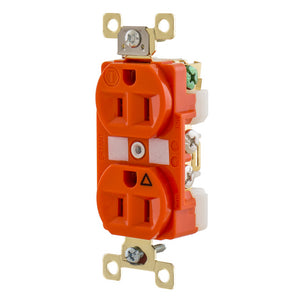

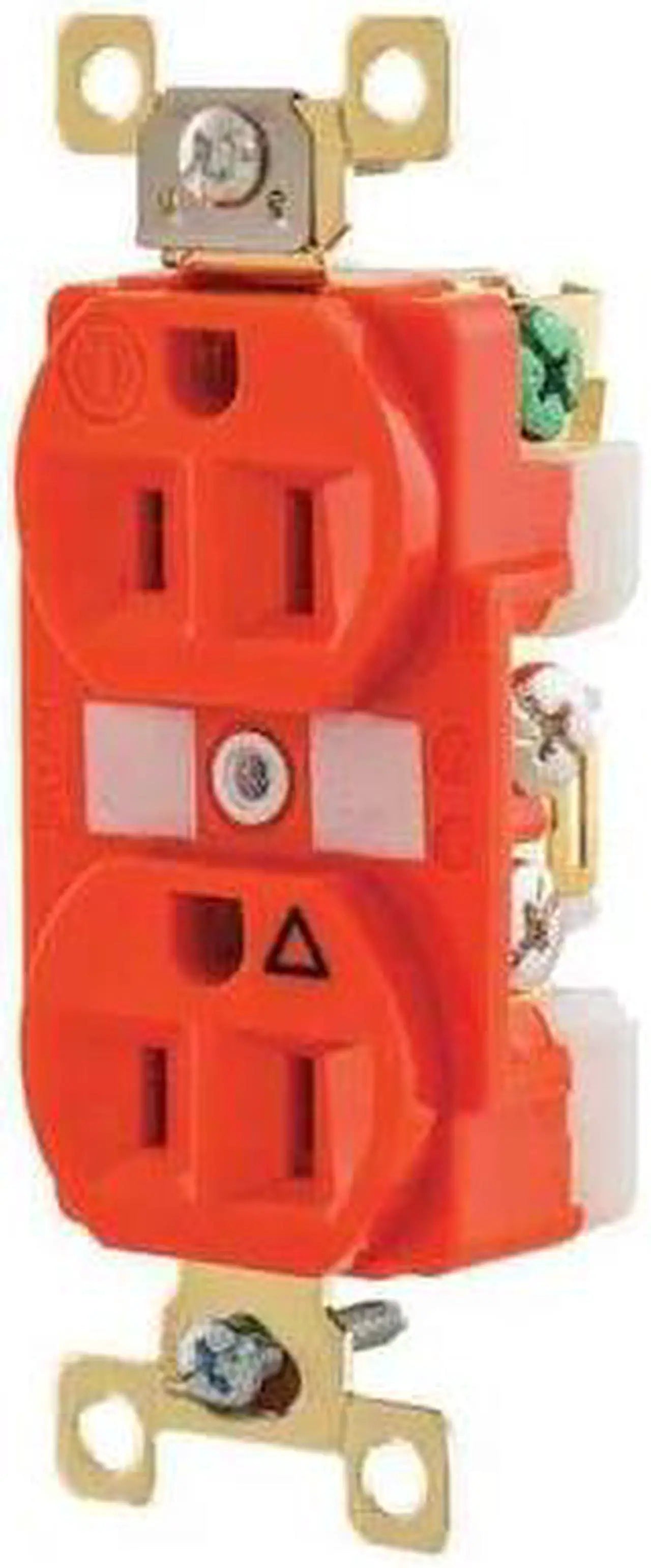

Bryant BRY5262IG Straight Blade Receptacle 15A 125V

Product Description

The Bryant BRY5262IG is a straight blade receptacle. This duplex receptacle is commercial/industrial grade, rated for 15A and 125V, and features 2-pole 3-wire grounding with a NEMA 5-15R configuration. It utilizes insulation barrier construction to isolate the ground contacts from the mounting strap.

• Nylon construction with circuit ID marking area
• Heavy duty, copper alloy self-grounding system
• One-piece grounding system including integral self-grounding strap

Product Highlights

This receptacle is designed to limit electrical noise on the equipment grounding circuit by providing two grounding paths for the installation.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5262IG
• Country of Origin: CN

Technical Specifications

• Approval: UL 498, CSA, NOM
• Configuration: NEMA 5-15R
• Grade: Industrial, Specification
• Ground Type: Isolated Grounding
• Manufacturer Name: Bryant
• Material: Nylon (Body), Nickel and Brass Plated Steel (Yoke)
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Product UPC: 781786005105
• Type: Finder Groove Face Duplex
• Wiring: Back, Side
• Brand: Bryant Electric
• Voltage: 125 Volts
• Amperage: 15 Amps
• Connector Type: Plug-In
• Total Power Outlets: 2
• Specification Met: NEMA
• Model: BRY5262IG
• Part Number: BRY5262IG
• Included Components: Receptacle
• Unit Count: 1.0 Count
• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: BRY5262IG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Straight Blade
• Style: Finder Groove Face
• Display Size: Standard Sized Product
• Height: 1.16 in
• Length: 3.28 in
• Width: 1.54 in
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating Description: 125 V
• Wattage: 1875
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: Yes
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Features: Receptacle, Straight Blade, Amps - Plugs and Receptacles 15 A, 5-15R, 125V AC, Number of Poles 2, Number of Wires 3, Tamper Resistant No, Weather Resistant - Plugs and Receptacles No, Outlet Type - Plugs and Receptacles Standard Duplex, Mounting Type - Plugs and Receptacles Flush, Orange, Wiring Method - Plugs and Receptacles Back and Side, Surge Suppression No, Material Nylon, Phase 1, HP 1/2 hp, Corrosion Resistant No, Power Indicator No
