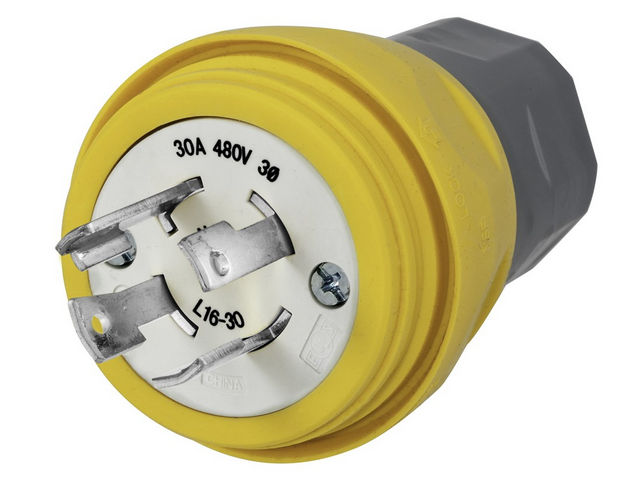

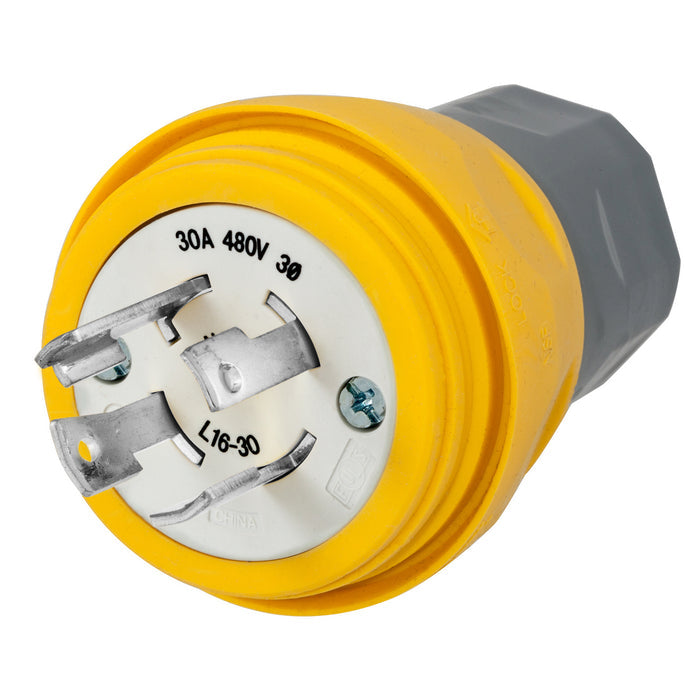

Bryant BRY28W76 Watertight Plug 30A/480V

Product Description

The Bryant BRY28W76 is a watertight plug designed for industrial and commercial applications. This male plug is part of the Bryant Electric Plugs & Receptacles family. It is designed to withstand harsh environments while providing a secure and reliable electrical connection.

• Watertight and dust-tight housing
• 30A 3-Phase Delta 480V AC
• 3-Pole 4-Wire Grounding

Product Highlights

This Bryant watertight plug features a screw terminal and is suitable for various heavy-duty applications requiring a robust and environmentally sealed connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY28W76

Technical Specifications

• Product Name: Bryant Watertight Plug NEMA L16-30P 30A/480V 3PH (BRY28W76)
• Brand: Bryant
• SKU: BRY28W76
• Manufacturer Part Number: BRY28W76
• Voltage: 480 VAC
• UPC Code: #781786378780
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Watertight Devices, Locking Devices, Elastomeric, Male Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Yellow, Water/Dust-Tight Housing
• Current Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Body Type: Straight
• Connection Type: Plug
• NEMA Configuration: L16-30P
• Color: Yellow
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
