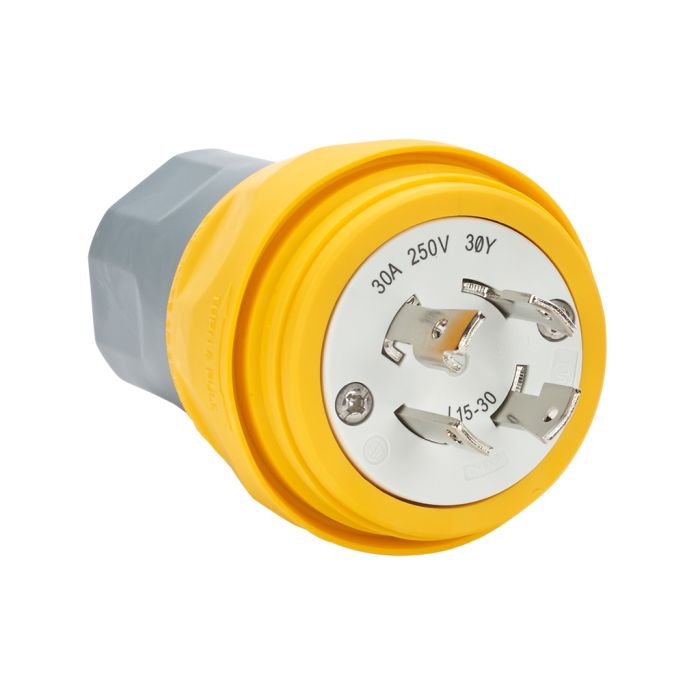

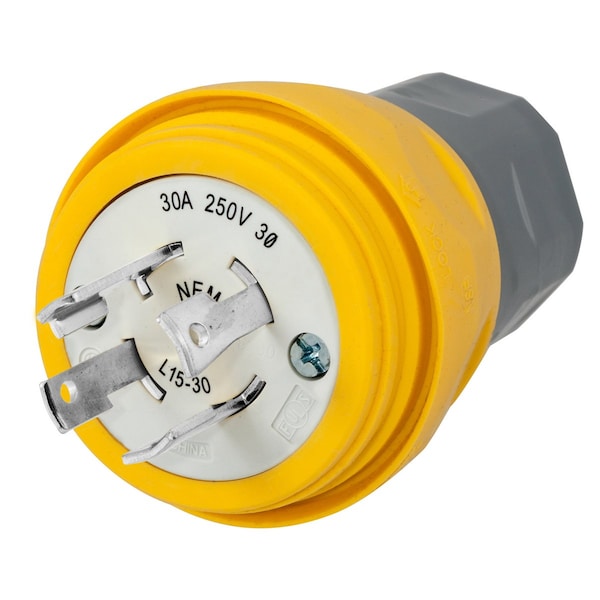

Bryant BRY28W75 Watertight Locking Plug 30A 250 VAC L15-30P

Product Description

The BRYANT BRY28W75 is a watertight locking plug designed for 30A, 250V AC applications. This male plug features a 3-pole, 4-wire grounding configuration and a L15-30P NEMA configuration. It features a water/dust-tight housing and screw terminals. Ideal for industrial and commercial use, this plug ensures a secure and environmentally protected connection.

• Triple bypass seal keeps water away from electrical connections
• Corrosion-resistant connection points
• High conductivity brass termination

Product Highlights

Watertight locking plug with robust construction, ideal for demanding environments requiring secure and protected electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY28W75
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: BRY28W75
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Plug
• NEMA Configuration: L15-30P
• Color: Yellow
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• For Maximum Cable Diameter: 1.05 in
• For Minimum Cable Diameter: 0.385 in
• Wire Size: Min. cords: #12/3 SJ, #16/3 S, #14/4 SJ, #18/4 S, #18/5 S;Max. cord: #8/3 S, #8/4 S, #10/5 S
• Item: Watertight Locking Plug
• Voltage Rating: 250V AC
• Phase: Three
• Number of Blades: 4
• Wire Connection Type: Screw Terminals
• Connection Orientation: Straight
• Grounding: Grounded
• Housing Color: Yellow
• IP Rating: IP69K
• Standards: ANSI/UL 498 File E17740, CSA Certified C22.2 No. 42, NSF/ANSI/3-A 14159-1
• Resistance Properties: Antimicrobial, Corrosion Resistant, Dust-tight, Watertight
• Amperage Rating: 30 A
• Performance: Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6PUV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors)
