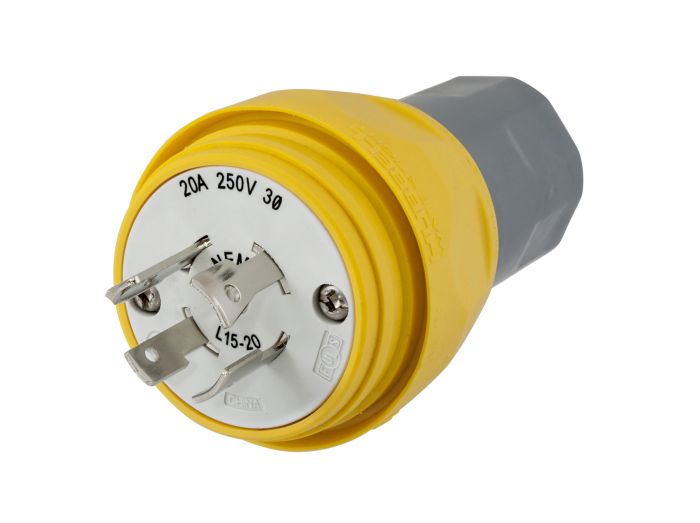

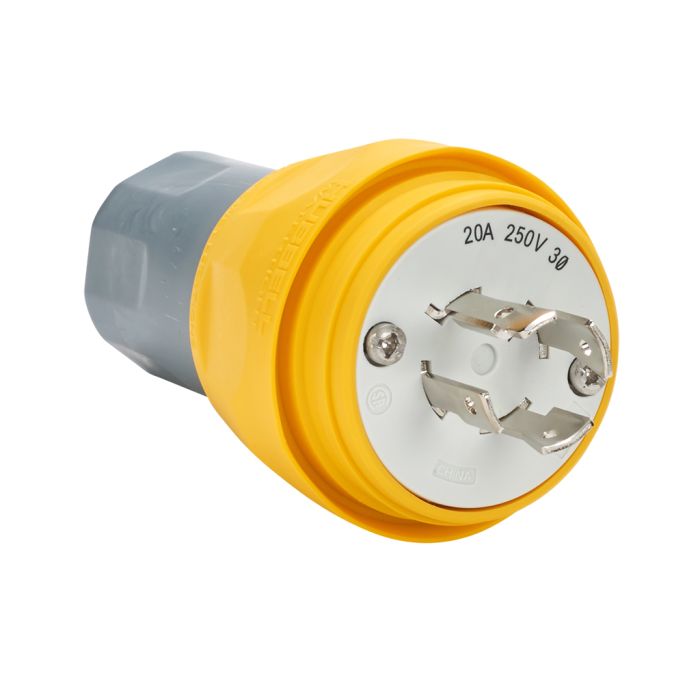

Bryant BRY26W75 Watertight Locking Plug: 20A, 250 VAC

Product Description

The Bryant BRY26W75 is a watertight locking plug rated at 20A and 250 VAC. This plug features a water/dust-tight housing and screw terminals. It is suitable for various industrial and commercial applications requiring a reliable and environmentally protected electrical connection.

• Triple bypass seal keeps water away from electrical connections
• Corrosion-resistant connection points
• High conductivity brass termination

Product Highlights

Watertight locking plug with a 20A current rating and 250 VAC voltage rating. Features a robust design for water and dust protection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY26W75
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: BRY26W75
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Plug
• NEMA Configuration: L15-20P
• Color: Yellow
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Catalog Number: BRY26W75
• Item Type: 20A Watertight Plug
• Dielectric voltage: 2000V AC if rated 300V or less, 3000V AC if rated above 300V
• Moisture resistance: UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12
• UV resistance: All exposed materials are UV stabilized
• Flammability: UL94V2 (plugs, connectors, and interiors)
• Type: Plugs
• UPC: 781786378414
• Height: 3.96 in
• Length: 2.51 in
• Width: 2.51 in
• Amperage Rating: 20 A
• Current Amperage Description: 20 Amp
• Voltage Rating: 3 Phase 250 VAC
• Voltage Rating Description: 3 Phase 250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: Min. cord: #16/3 SJ, #18/3 S, #18/4 SJ, #18/4 S, #18/5 S;Max. cord: #10/3 S, #10/4 S, #10/5 S
• Industry Standard(s): IP69K Listed to UL498 Certified to CSA C22.2 No. 42 Meets NEMA WD-1, WD-6, and ANSI Standards IP66 Suitability NSF Certified (plugs, connectors and receptacles)
• Nema Rating: L15-20P
• Performance: Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12 UV resistance:All exposed materials are UV stabilized Flammability:UL94V2 (plugs, connectors, and interiors)
