Bryant BRY25W47 female connector body 15A 125V L5-15R

Product Description

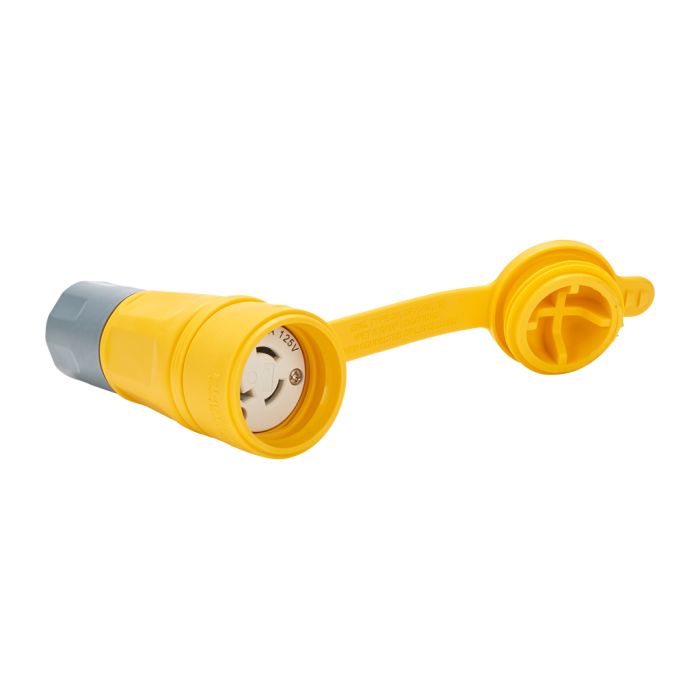

The BRYANT BRY25W47 is a watertight, elastomeric female connector body. Rated at 15A and 125V, this 2-pole, 3-wire grounding connector features a L5-15R NEMA configuration and screw terminals. Its smooth body design minimizes collection points, simplifying the wash-down process. The free-floating cap allows unwanted material to wash away during sanitation.

• Smooth body design minimizes collection points simplifying the wash down process
• Free-floating cap allows unwanted material to wash away during sanitation
• Unique cone seal prevents dirt and debris from collecting at the cable entrance

Product Highlights

This watertight locking connector is ideal for applications requiring robust and reliable connections in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY25W47
• Country of Origin: United States

Technical Specifications

• Catalog Number: BRY25W47
• Color: Yellow
• Item Type: 15A Watertight Connector
• Type: Connector Body
• UPC: 781786378322
• Height: 3.21 in
• Length: 1.85 in
• Width: 1.85 in
• Amperage Rating: 15 A
• Voltage Rating: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #16/3 SJ to #10/3 SJ, #18/3 S to #12/3 S
• Industry Standard(s): IP69K Listed to UL498 Certified to CSA C22.2 No. 42 Meets NEMA WD-1, WD-6, and ANSI Standards IP66 Suitability NSF Certified (plugs, connectors and receptacles)
• Nema Rating: L5-15R
• Performance: Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12 UV resistance:All exposed materials are UV stabilized Flammability:UL94V2 (plugs, connectors, and interiors)
• Manufacturer Part Number: BRY25W47
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L5-15R
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Poles: 2-pole
• Wires: 3-wire
• UL Type: 4, 4X, 6 and 6P
• Housing Material: Thermoplastic elastomer (PTE)
