Bryant BRY24W47 Watertight Locking Plug 15A 125 VAC L5-15P

HUBBELL
Brand: HUBBELL
SKU: BRY24W47
Availability: Out Of Stock
$43.84
$43.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

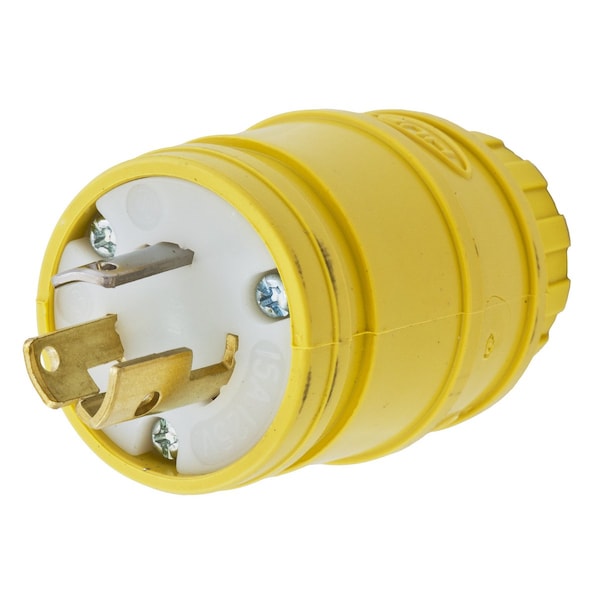

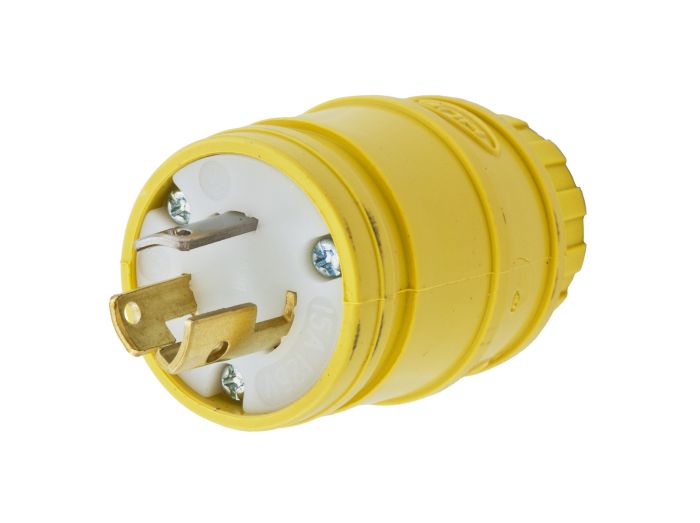

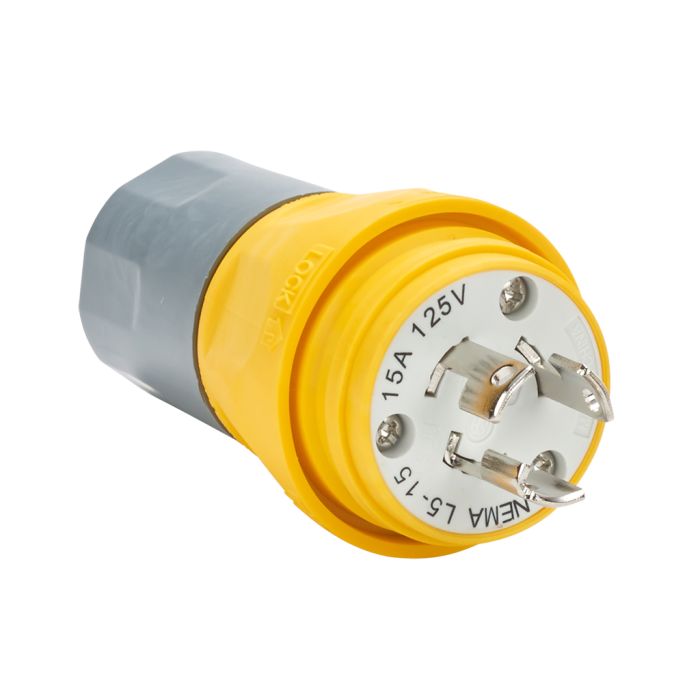

The BRYANT BRY24W47 is a watertight locking plug designed for 15A and 125 VAC applications. This 2-pole, 3-wire grounding plug features a water/dust-tight housing and screw terminals. It is suitable for use in environments where protection against water and dust is essential.

  • Triple bypass seal keeps water away from electrical connections
  • Features corrosion-resistant connection points
  • High conductivity brass termination

Product Highlights

This watertight locking plug is ideal for industrial and commercial applications requiring a reliable and durable connection.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: BRY24W47
  • Country of Origin: United States
Technical Specifications
Brand
BRYANT
MPN
BRY24W47
Current Rating
15 A
Number of Poles
2
Number of Wires
3
Voltage
125 VAC
Body Type
Straight
Connection Type
Plug
NEMA Configuration
L5-15P
Color
Yellow
Watertight
Yes
Isolated Ground
No
Illuminated
No
Approvals
CSA, UL
Item
Watertight Locking Plug
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
Listed to UL498 Certified to CSA C22.2 No. 42 Meets NEMA WD-1, WD-6, and ANSI Standards
Resistance Properties
Corrosion Resistant, Dust-tight, Watertight
Performance
Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6PUV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors)
Amperage Rating
15 A
Manufacturer Part Number
BRY24W47
Manufacturer
Bryant Electric
Family Series
Bryant Electric Plugs & Receptacles
For Maximum Cable Diameter
0.625 in
For Minimum Cable Diameter
0.30 in
Wire Size
#16/3 SJ to #10/3 SJ, #18/3 S to #12/3 S
Length
1.85in
Height
3.21 in
Width
1.85 in
