Bryant BRY15W47 Straight Blade Devices, Elastomeric, Female, 15A 125V, 2-Pole 3-Wire Grndng, 5-15P, Screw Terminal

Product Description

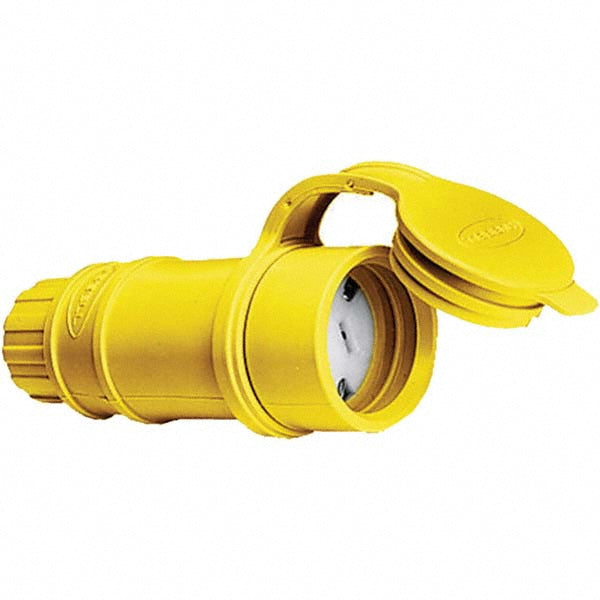

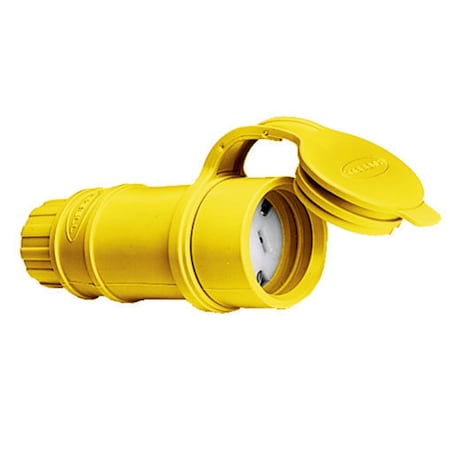

The BRYANT BRY15W47 straight blade device is an elastomeric, female connector body. Rated for 15A and 125V, it features a 2-pole, 3-wire grounding configuration with a 5-15P screw terminal. Designed with a water/dust-tight housing.

• Elastomeric
• Female Connector Body
• Screw Terminal

Product Highlights

This straight blade device is ideal for industrial applications requiring a robust and environmentally sealed connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY15W47
• Country of Origin: China

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 V
• Blade Type: Straight Blade
• Number of Poles: 2
• Number of Wires: 3
• Country of Origin: China
• Cord Range: 0.325"-0.625"
• OEM Brand Name: Hubbell Bryant
• Style: Straight
• Type: Connector Body
• UPC: 781786378186
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Grade: Industrial
• Connector Angle: No Angle
• Grounding Style: Self-Grounded
• Body Material: Polycarbonate
• Standards: UL Listed; CSA Certified
• Number Of Phases: 1
• Manufacturer Part Number: BRY15W47
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 15 A
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Connector
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
