Bryant BRY15W33 Female Connector Body 20A 125V 5-20P

Product Description

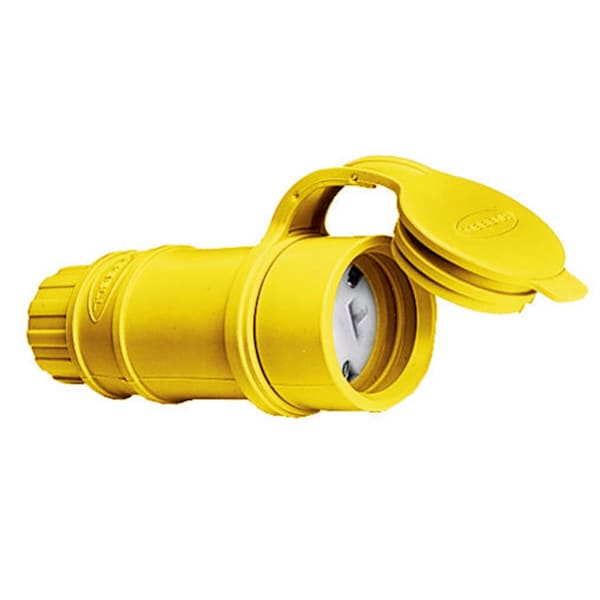

The BRYANT BRY15W33 is a straight blade, elastomeric, female connector body. Rated for 20A and 125V, it features 2-pole, 3-wire grounding and a 5-20P configuration. The connector includes a screw terminal and a water/dust-tight housing.

• Female Connector Body
• 20A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

This connector is ideal for applications requiring a robust and environmentally sealed connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY15W33
• Country of Origin: United States

Technical Specifications

• Catalog Number: BRY15W33
• Color: Yellow
• Cord Range: 0.325"-0.625"
• OEM Brand Name: Hubbell Bryant
• Type: Connector Body
• UPC: 781786378223
• Length: 4.42 in
• Width: 1.85 in
• Amperage Rating: 20 A
• Current Rating: 20 A
• Voltage Rating: 125 V
• Number Of Poles: 2
• Number Of Wires: 3
• Nema Rating: 5-20R
• Manufacturer Part Number: BRY15W33
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: 5-20R
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Item: Straight Blade Connector
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Connection Orientation: Straight
• Grounding: Grounded
• Housing Color: Yellow
• Cap Type: Flip-Up Cap
• IP Rating: IP65, IP66, IP67, IP69K
• Standards: UL Listed, CSA Listed, NSF
• Resistance Properties: Dust-Tight, Watertight
