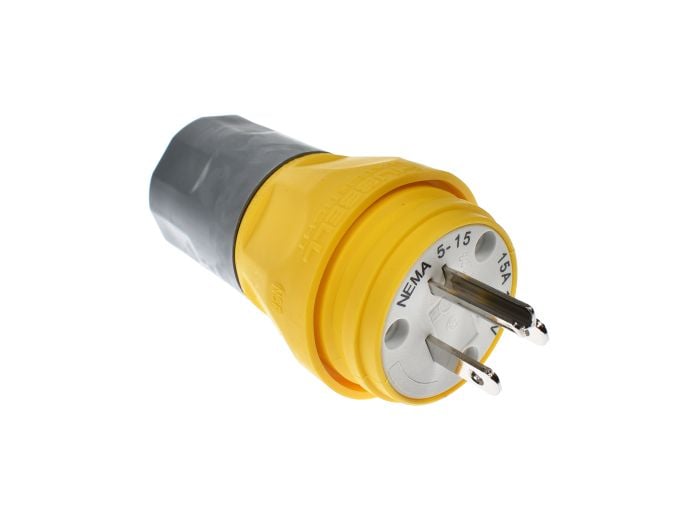

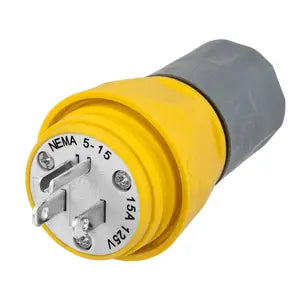

Bryant BRY14W47 Male Plug 15A 125V 5-15P

Product Description

The BRYANT BRY14W47 is a straight blade, elastomeric, male plug. Rated at 15A 125V, this 2-Pole 3-Wire grounding plug features a 5-15P NEMA rating and screw terminals. It has a water/dust-tight housing.

• Male
• 15A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

The BRYANT BRY14W47 plug is ideal for industrial automation, MRO, pneumatic, motion, electronic, hydraulic, HVAC and electrical control equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY14W47

Technical Specifications

• Catalog Number: BRY14W47
• Color: Yellow
• Cord Range: 0.325"-0.625"
• OEM Brand Name: Hubbell Bryant
• Style: Straight
• Type: Plug
• UPC: 781786378117
• Length: 3.16 in
• Width: 1.85 in
• Amperage Rating: 15 A
• Current Rating: 15 A
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2
• Number Of Wires: 3
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: BRY14W47
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Elastomeric, Male Plug, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, Screw Terminal, Yellow, Water/Dust-Tight Housing
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Net Weight: 0.2 lbs
• Gross Weight: 0.3 lbs
• Brand: BRYANT
• Condition: New Open box
