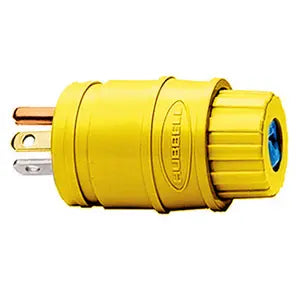

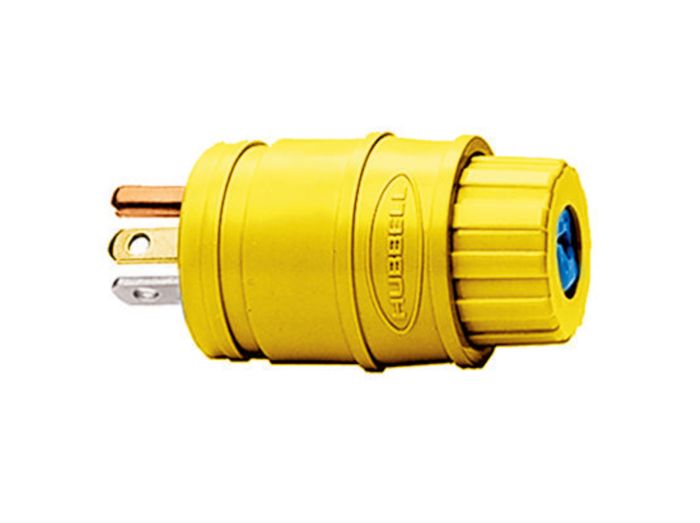

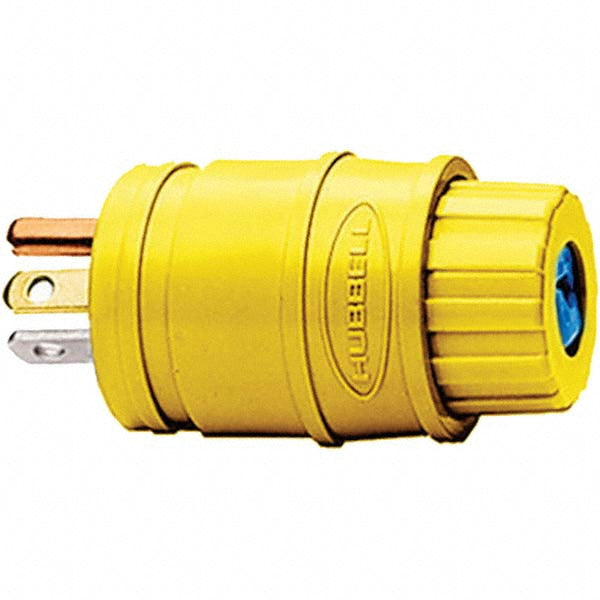

Bryant BRY14W33 Male Plug 20A 125V 5-20P

Product Description

The BRYANT BRY14W33 is a straight blade, elastomeric, male plug. Rated at 20A and 125V, this 2-pole, 3-wire grounding plug features a 5-20P NEMA configuration and screw terminals. It has a water/dust-tight housing.

• Industrial Grade
• Self-Grounded
• Polycarbonate Body

Product Highlights

This straight blade plug is ideal for industrial applications requiring a watertight connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY14W33
• Country of Origin: UNITED STATES

Technical Specifications

• Catalog Number: BRY14W33
• Color: Yellow
• Cord Range: 0.325"-0.625"
• OEM Brand Name: Hubbell Bryant
• Type: Plug
• UPC: 781786378155
• Length: 3.16 in
• Width: 1.85 in
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Nema Rating: 5-20P
• Connector Type: Plug
• Grade: Industrial
• Connector Angle: No Angle
• Amperage: 20 A
• Voltage: 125V
• Grounding Style: Self-Grounded
• Resistance Features: Watertight
• Number Of Phases: 1
• Body Material: Polycarbonate
• Standards: UL Listed; CSA Certified
• UNSPSC Code: 39121400
• Product Service Code: 5935
• Manufacturer Part Number: BRY14W33
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Elastomeric, Male Plug, 20A 125V, 2-Pole 3-Wire Grounding, 5-20P, Screw Terminal, Yellow, Water/Dust-Tight Housing
• Current Rating: 20 A
• Body Type: Straight
• Connection Type: Plug
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
