Bryant AP100 Heavy Duty Products Receptacle and Inlet Angle Adapter

Product Description

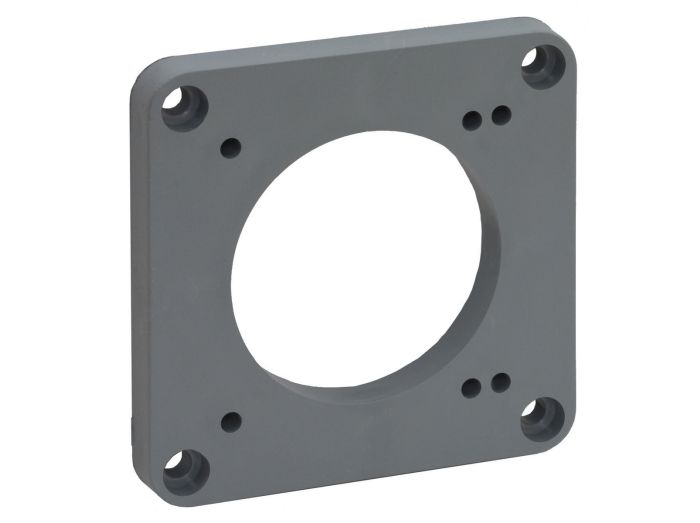

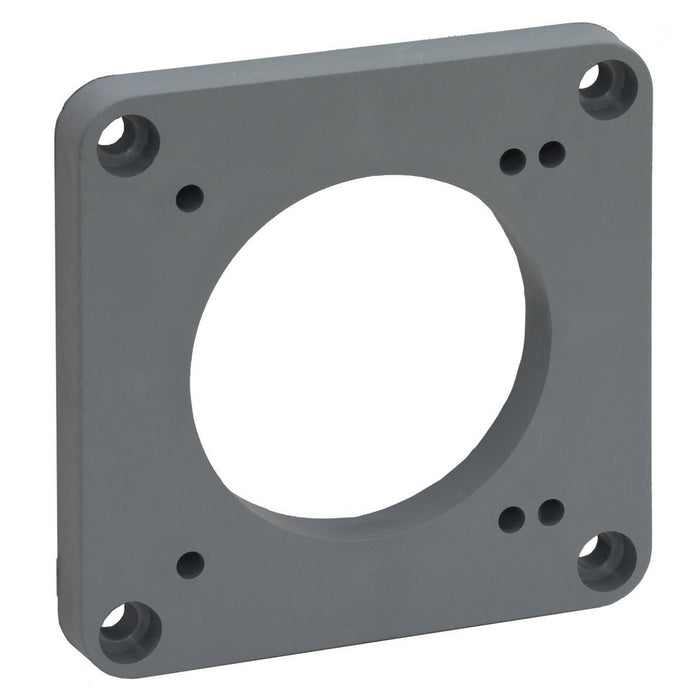

The BRYANT AP100 is an industrial grade receptacle and inlet angle adapter for 100A devices. It is designed as an accessory for heavy-duty applications. Constructed from gray cast aluminum, it includes mounting screws for easy installation. It allows pin-and-sleeve receptacles and inlets to be installed at an angled orientation.

• Industrial Grade
• Accessory
• Receptacle and Inlet Angle Adapter

Product Highlights

The BRYANT AP100 adapter is ideal for adjusting connection direction in areas with space constraints.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: AP100
• Country of Origin: United States

Technical Specifications

• Catalog Number: AP100
• Color: Gray
• Construction: Cast
• Item Type: Adapter Plates
• Material - Mounting Hardware: Mounting Screws
• Number Of Outlets: Accepts 1-Device
• OEM Brand Name: Hubbell Bryant
• Series: Back Boxes and Adapters
• Style: For 100A IEC Devices
• Type: Adapter Only
• Material: Cast Aluminum
• Includes: Mounting Screws
• Box Type: Dead End
• Angle: Straight
• For Use With: For 100 A IEC Devices
• IP Rating: IP67
• Compatible Device Current: 100 A
• Standards: IEC
• Brand: Bryant
• Compatible Series: IEC 60309 Pin & Sleeve Devices
• Hub Diameter: 1.5 in
• Overall Length: 5.9 in
• Overall Width: 5.4 in
• Comments: Gray Cast Aluminum
• Accessory Type: Angle Adapter
• Plug and Receptacle Type: Pin and Sleeve
