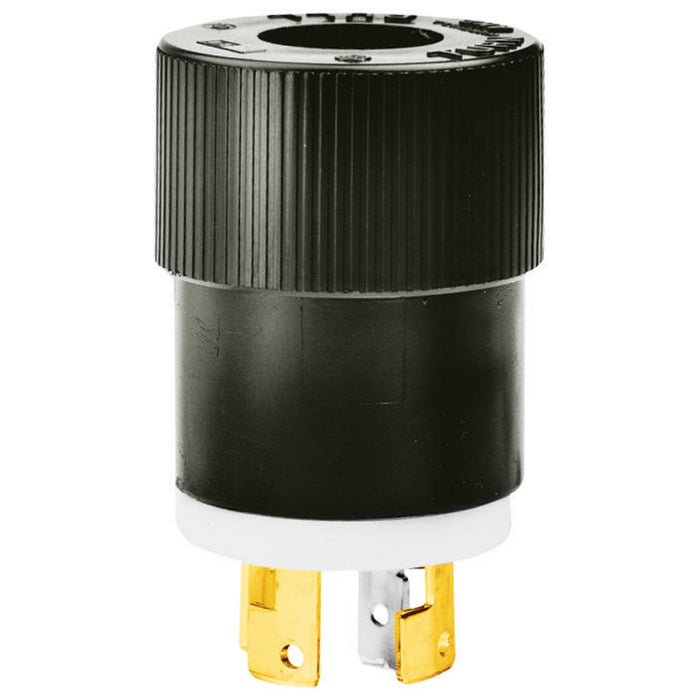

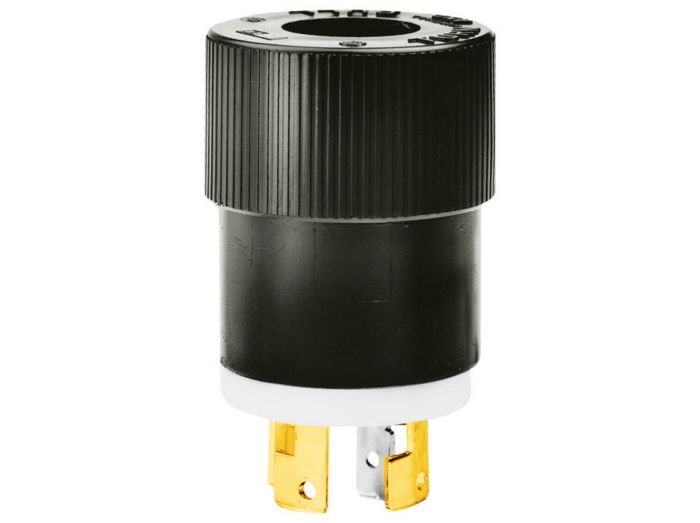

Bryant 9967 Locking Devices Industrial Male Nylon Plug 20A 3-Phase Wye 120/208V Non-NEMA

Product Description

The BRYANT 9967 is an industrial male nylon plug designed for locking devices. Rated at 20A for 3-Phase Wye 120/208V, this 4-pole, 4-wire non-grounding plug features a non-NEMA configuration and screw terminals. Constructed from composite material, it is suitable for extra heavy-duty industrial applications.

• Male Nylon Plug
• 20A 3-Phase Wye 120/208V
• 4-Pole 4-Wire Non Grounding

Product Highlights

Industrial grade locking plug with screw terminals and composite construction.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9967
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 9967
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Nylon Plug-For Replacement Use
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786633803
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 120/208 V AC
• Voltage Rating Description: 3 Phase Y 120/208 VAC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: Non-NEMA
• Cord Type: All Listed Portables
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 120 VAC, 208 VAC
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Comments: Replacement Use Only
• Country of Origin: United States
• Grade: Industrial
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Product Name: Bryant Locking Plug 20A 120/208V Black And White (9967)
• Brand: Bryant
• Mfr. Part Number: 9967
• Cord Diameter: 0.625 to 1.15 in
• Features: Locking Plug
