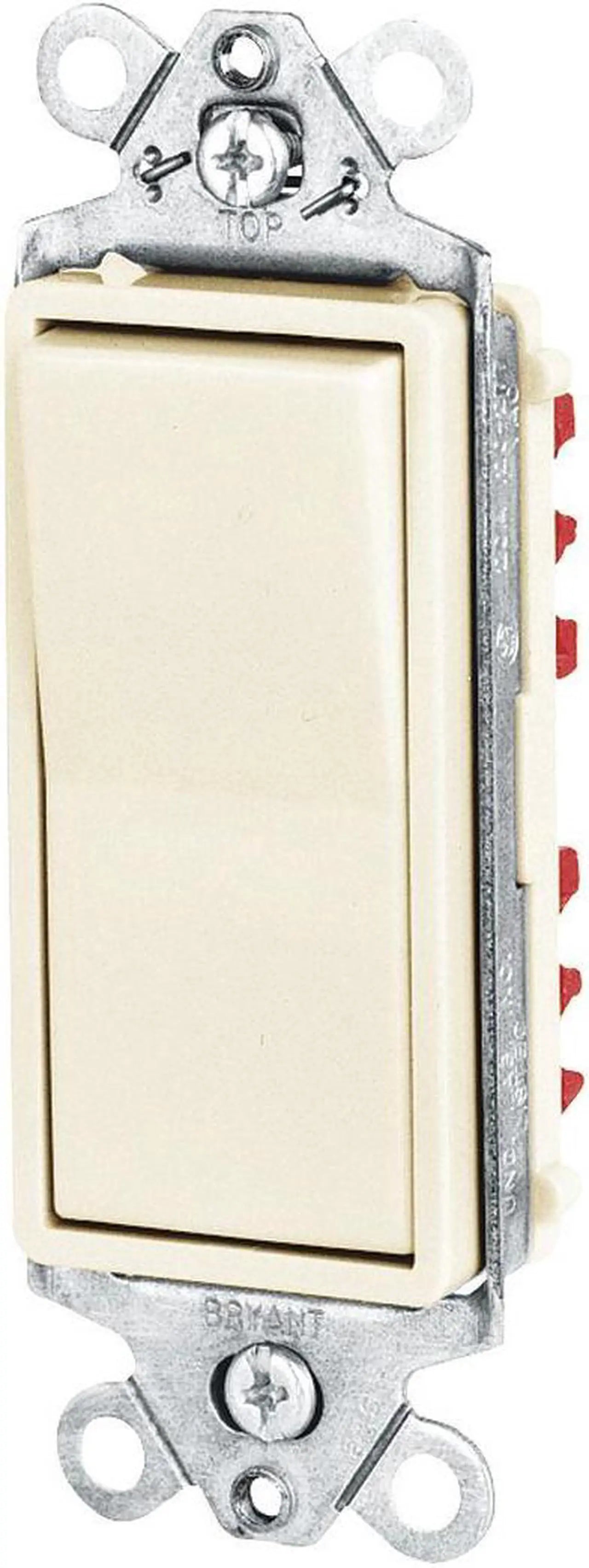

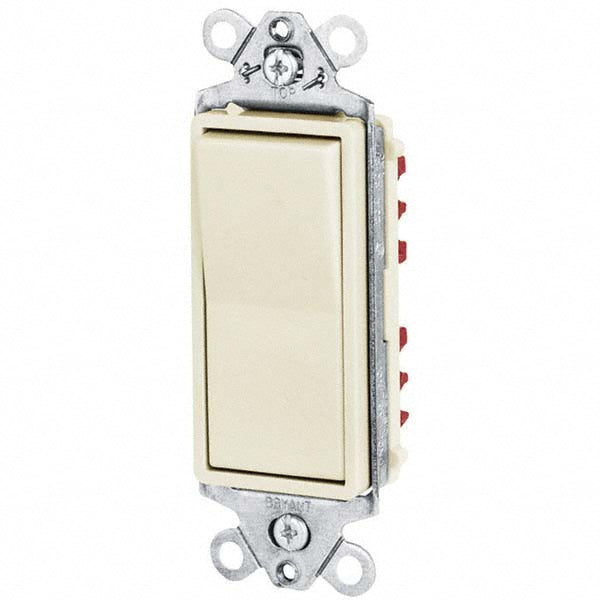

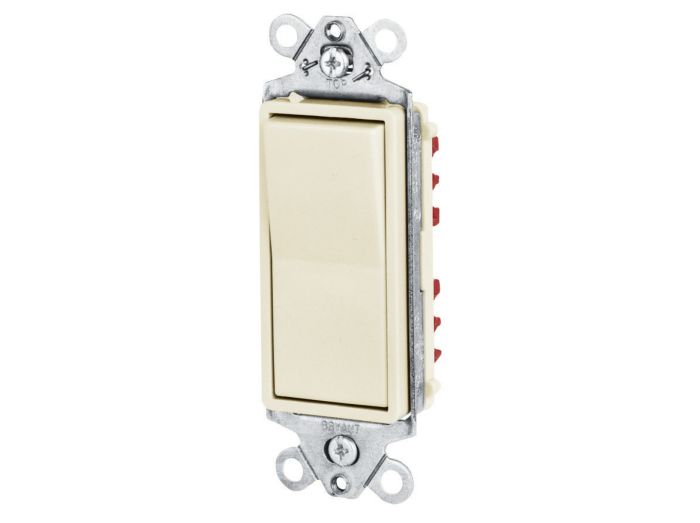

Bryant 9901I 1p 20A 120/277 Ac Switch

Product Description

The Bryant 9901I is a 1P 20A 120/277 AC switch. These rocker wall switches use wide actuators that rock back and forth to open or close the electrical circuits they control. Commonly used to control power to lights, ceiling fans, outlets, and other electrically powered equipment.

• Stainless Steel Spring
• Maintained Switch Function
• Rocker Switch Style

Product Highlights

The Bryant 9901I is a single pole, 20A, 120/277V AC rocker switch with screw terminals and back/side wiring.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9901I
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: 9901I
• Current Rating: 20 A
• Features: Stainless Steel Spring Wire
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: UL/CSA
• Switch Function: Maintained
• Switch Style: Rocker
• Switch Type: Single Pole
• Voltage Rating: 120/277V AC
• Wire Connection Type: Screw Terminals
• Color: Ivory
• Wiring Method: Back/Side
• Grade: Commercial
• Minimum Operating Temperature: -20.0 F
• Includes: Terminal Screws
• Standards Met: UL Listed; CSA Certified
• Country of Origin: China
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Switch Configuration: Single Pole
• Voltage: 120 VAC, 277 VAC
• Operator Color: Ivory
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Comments: Self-Grounding
